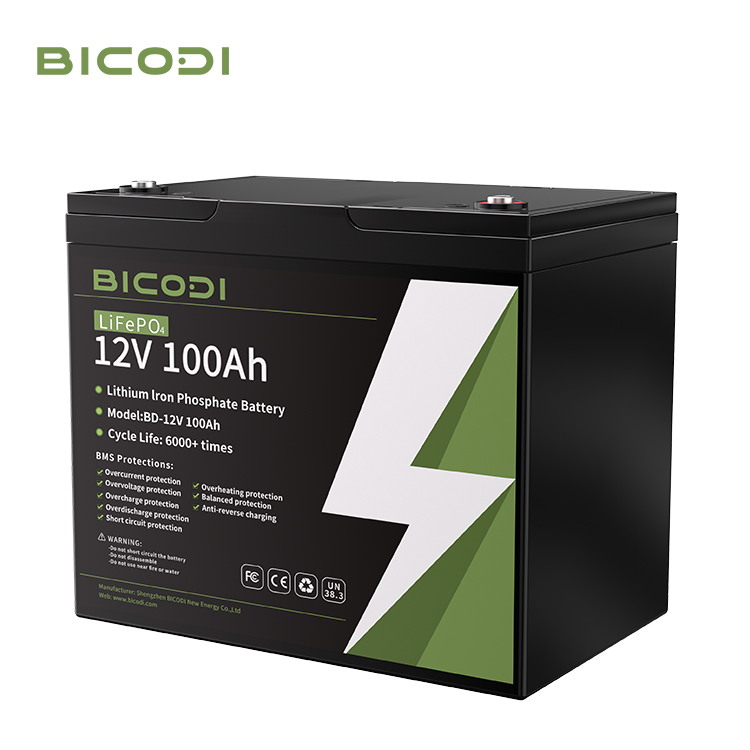

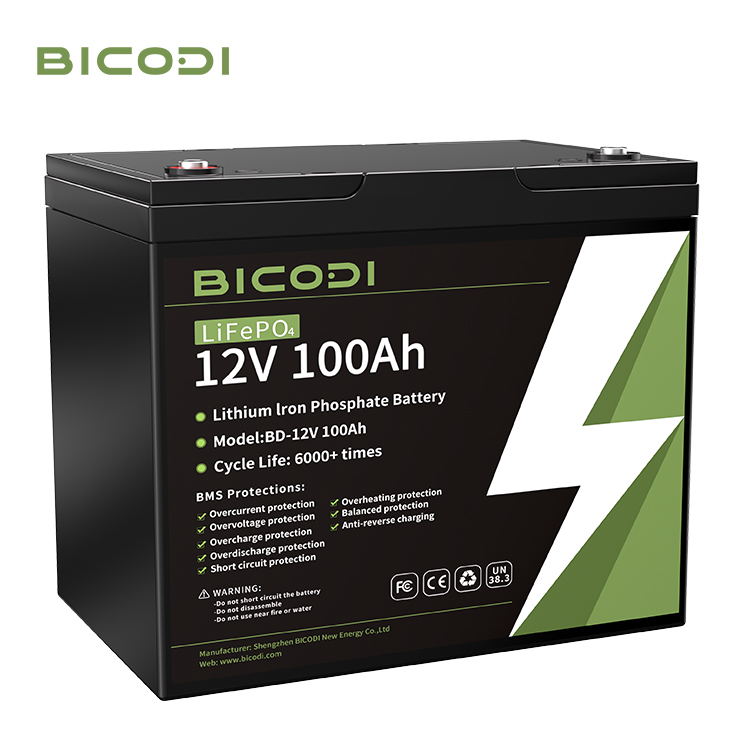

The BD12-100 utilizes high-performance lithium iron phosphate battery cells, providing superior power support for your devices.
With over 6000 cycles of life, this battery has a lifespan of up to fifteen years, far exceeding that of traditional lead-acid batteries.

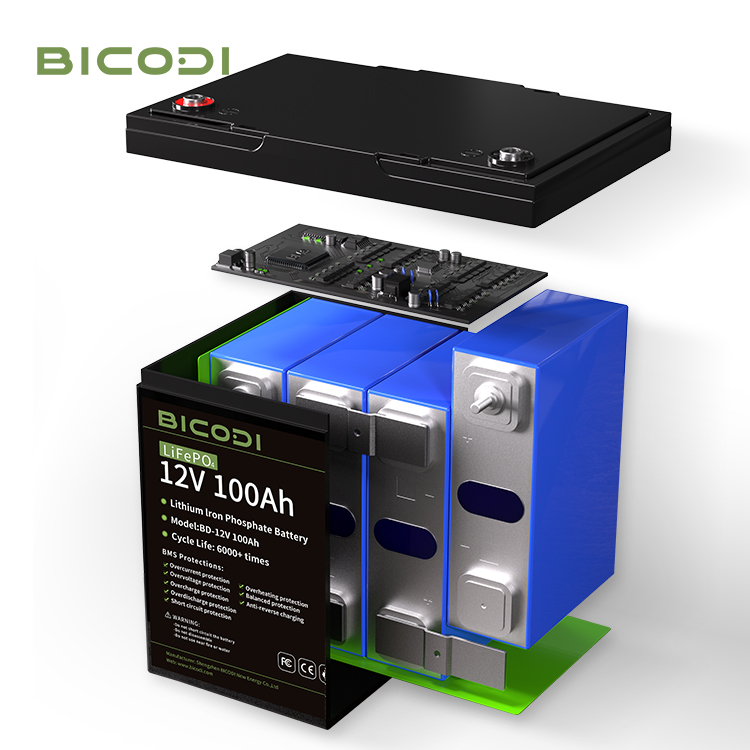

Furthermore, weighing only 10kg, it is easy to carry. It features an advanced Battery Management System (BMS) to ensure the safety and stability of the battery, making it a high-performance and durable power solution.

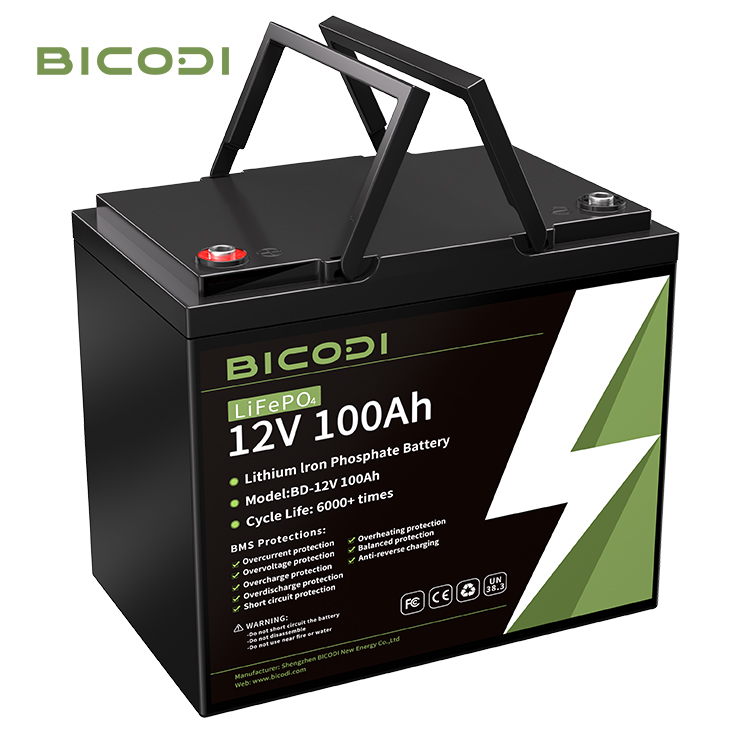

Its portable design with a handle makes it convenient for users to carry with one hand at any time.
The BD12-100 is the ideal choice for your devices, delivering outstanding power performance.
Under normal operating conditions, our phosphate iron lithium battery can achieve a cycle life of over 2000 times, far exceeding traditional lead-acid batteries.
Yes, our phosphate iron lithium battery has high-temperature adaptability and strong environmental resistance, making it very suitable for outdoor use.
Our phosphate iron lithium battery supports fast charging, and the charging time depends on the charger's power and the remaining battery power. Typically, it can be fully charged in 2-4 hours.
Our phosphate iron lithium battery is equipped with a high-quality battery management system, which prevents overcharging, over-discharging, and short circuits, providing very reliable safety performance.
Due to the longer cycle life and lower energy degradation of phosphate iron lithium batteries compared to traditional lead-acid batteries, the maintenance cost is lower, saving users more expenses.
model | BD12-100 |
Battery Type | Lithium |
cell | IFpP50160118-100P3 |
net weight | 10kg |
gross weight | 12kg |
size | 260x168x211 |
Package size | 310*218*266 |
protection grade | IP65 |
warranty | Protection board for 1 year, with a 5-year warranty for the entire machine |
cell performance parameter | |
cell capacity | 1.28kWh |
available capacity | 1.2kWh |
DOD | <95% |
rated voltage | 12.8V |
Operating voltage range | 10 V~14.6V |
internal resistance | <15mΩ |
cycle life | 6000cls |
Operating mode | |
Standard Charge & Discharge Current | 100A |
Max Charging & Discharging Current | 200A |
Discharge temperature range | -20~60℃ |
Storage Humidity | ≤85%RH |
BATTERY MANAGEMENT SYSTEM | |
energy consumption | ≤100uA |
monitored parameters | Battery voltage, charging current, discharge current, charging temperature, discharge temperature, MOS temperature, pressure difference |
Protection function | Overcharge protection, over discharge protection, charging overcurrent protection, discharge overcurrent protection, short circuit protection, charging high and low temperature protection, discharge high and low temperature protection, MOS high temperature protection, balance |
Maximum number of series connections | 4 |
Cooling method | natural cooling |
safety certification | UN38.3、MSDS、CE、CE、IEC62619 |
parts list | 2 copper noses, 2 screws |
