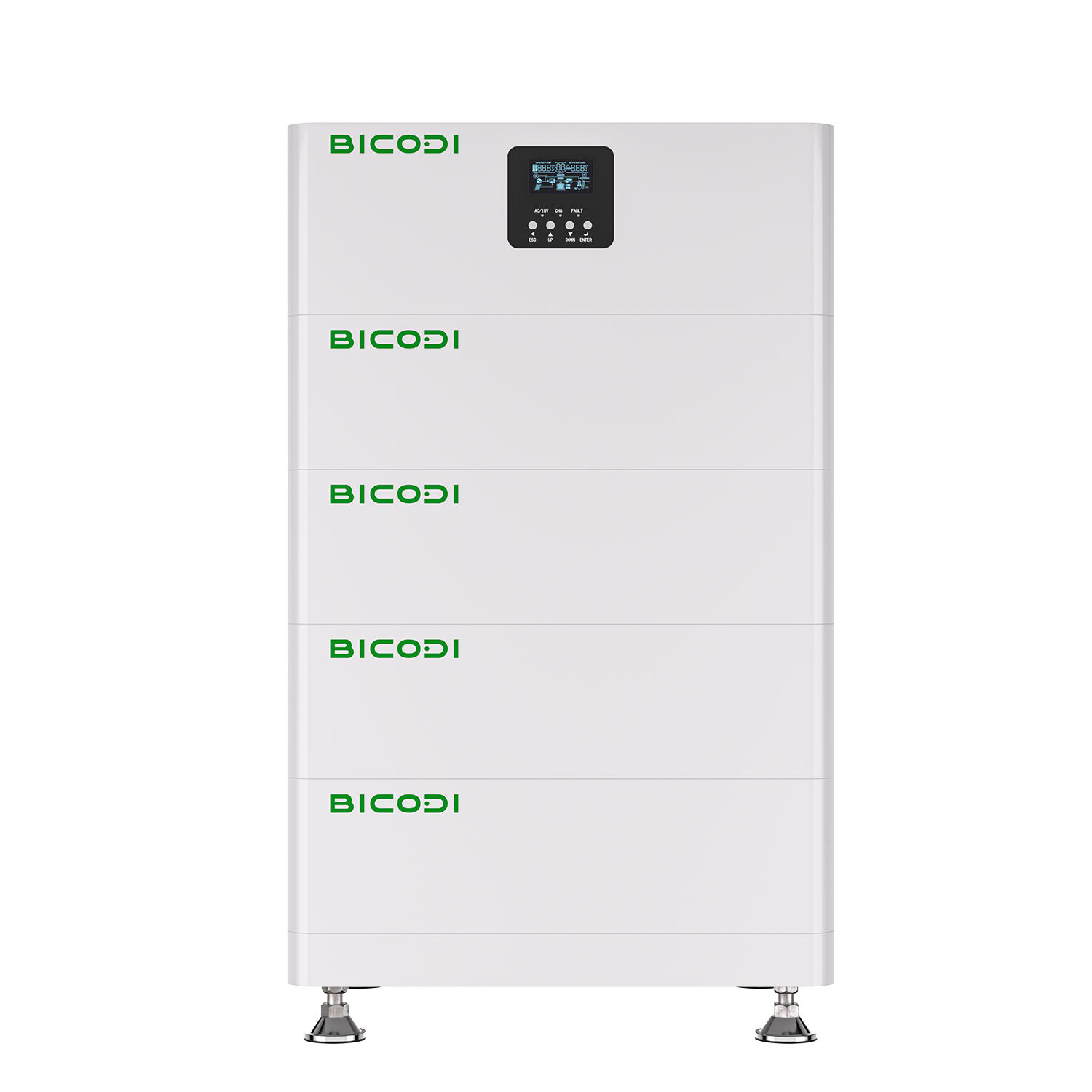

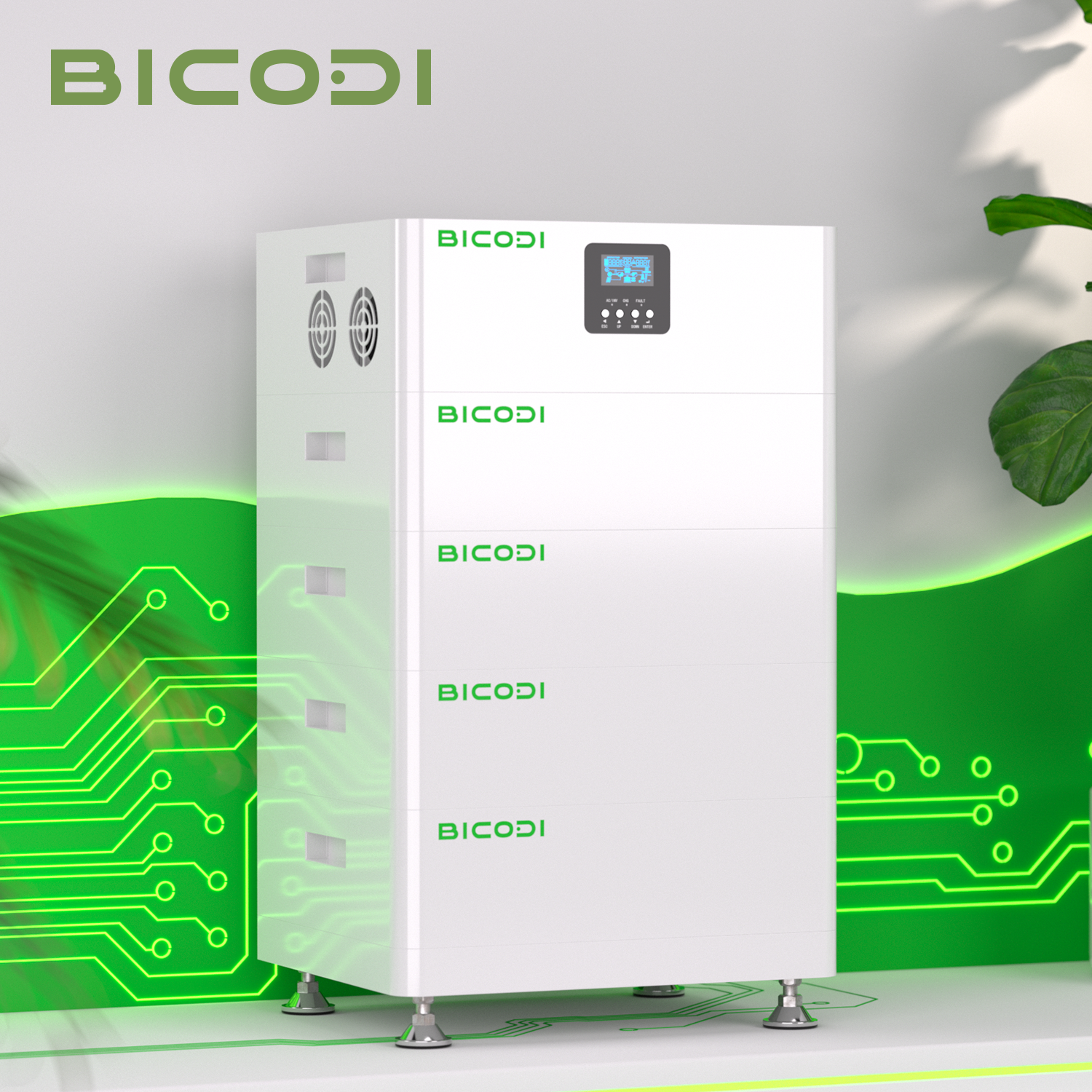

Stacked Integrated Household Energy Storage Lifepo4 Lithium Battery With Inverter Integrated 5kw-90kw

Short Description:

BDF048L05-2205 adopts a stacked design, integrating inverter and battery. Supports up to 16 sets of batteries in parallel and up to 90KW of electrical energy storage. It can simultaneously meet the requirements of household electricity and electric vehicle charging.

We use the brand new LiFePO4 Lithium Battery design, and for the safety of you and your family, we always adhere to the same quality.

Basic Parameters

Model: BDF048L05-2205

Battery Type: LiFePO4 Lithium Battery

Battery Capacity: 5KW-90KW

Designed Cycles Life: ≥6000cls

Certification: UN38.3、MSDS、UL1973、IEC62619

Send email to us Datasheet Download

Product Detail

PARAMETER

Product Tags

DESCRIPTION

MULTIFUNCTIONAL OUTPUTS

1、Adopting lithium iron phosphate battery cells: Lithium iron phosphate battery cells offer high safety and stability, along with a longer service life.
2、Integrated design of inverter and battery: integrated design of the inverter and battery simplifies the installation process, providing a more convenient user experience.
3、High cycle life: The battery cells have a cycle life of over 6000 times, allowing for stable operation over a long period and reducing the frequency of battery replacement.
4、White sheet metal body design: The sleek and elegant white sheet metal body design is perfect for home environments, not only aesthetically pleasing but also enhancing the overall home atmosphere.These features make the BDF048L05-2205 a reliable and high-performance home solar energy storage battery, helping users achieve more sustainable energy use.

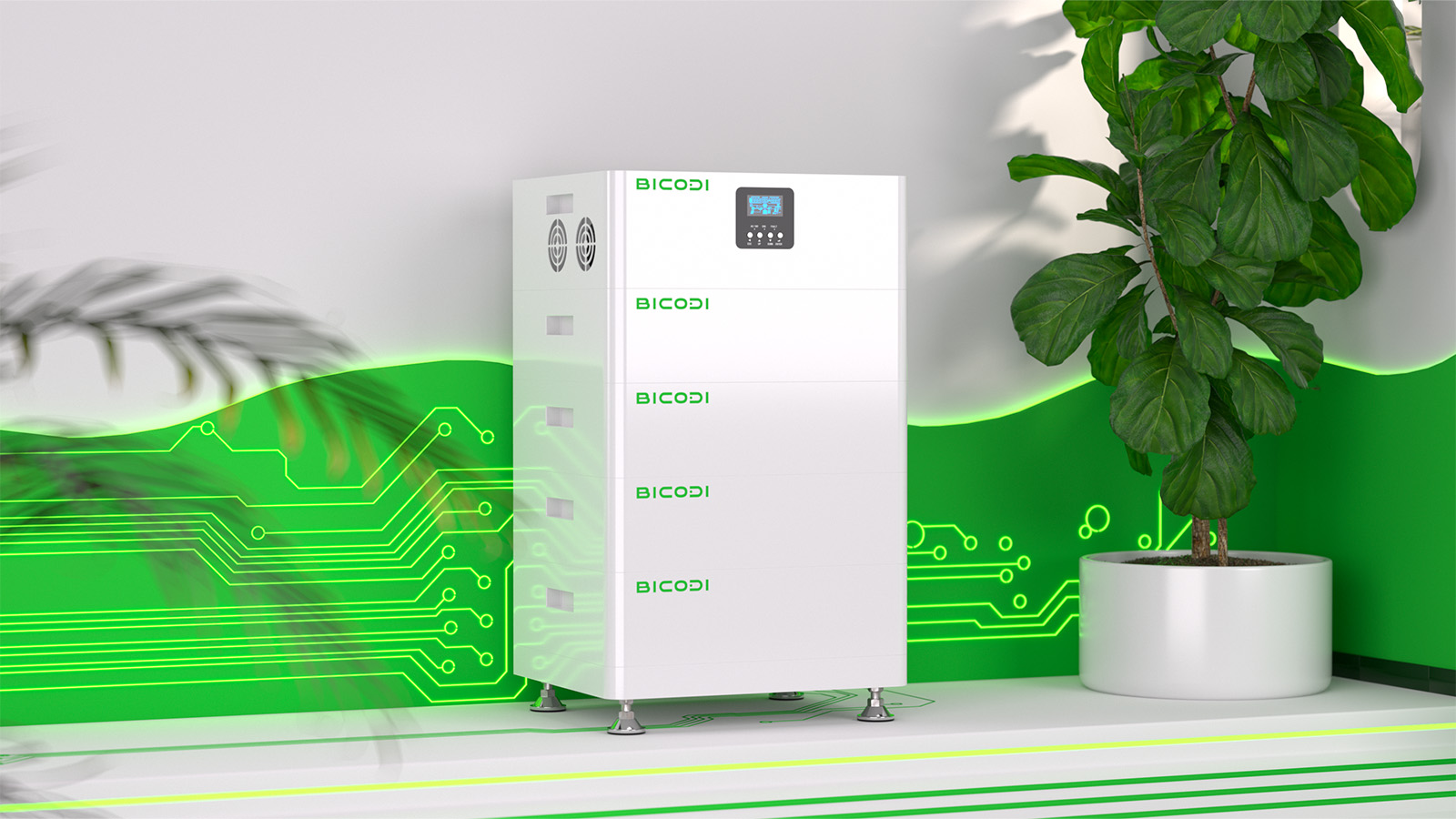

BDF048L05-2205 Home solar energy storage battery

PRODUCT HIGHLIGHTS

5120Wh

Maximum capacity is 5120Wh Smaller volume gets more battery life

lilifepo4 battery

Super stable lilifepo4 lithium battery chemistry, 6000+ cycle life

The communication

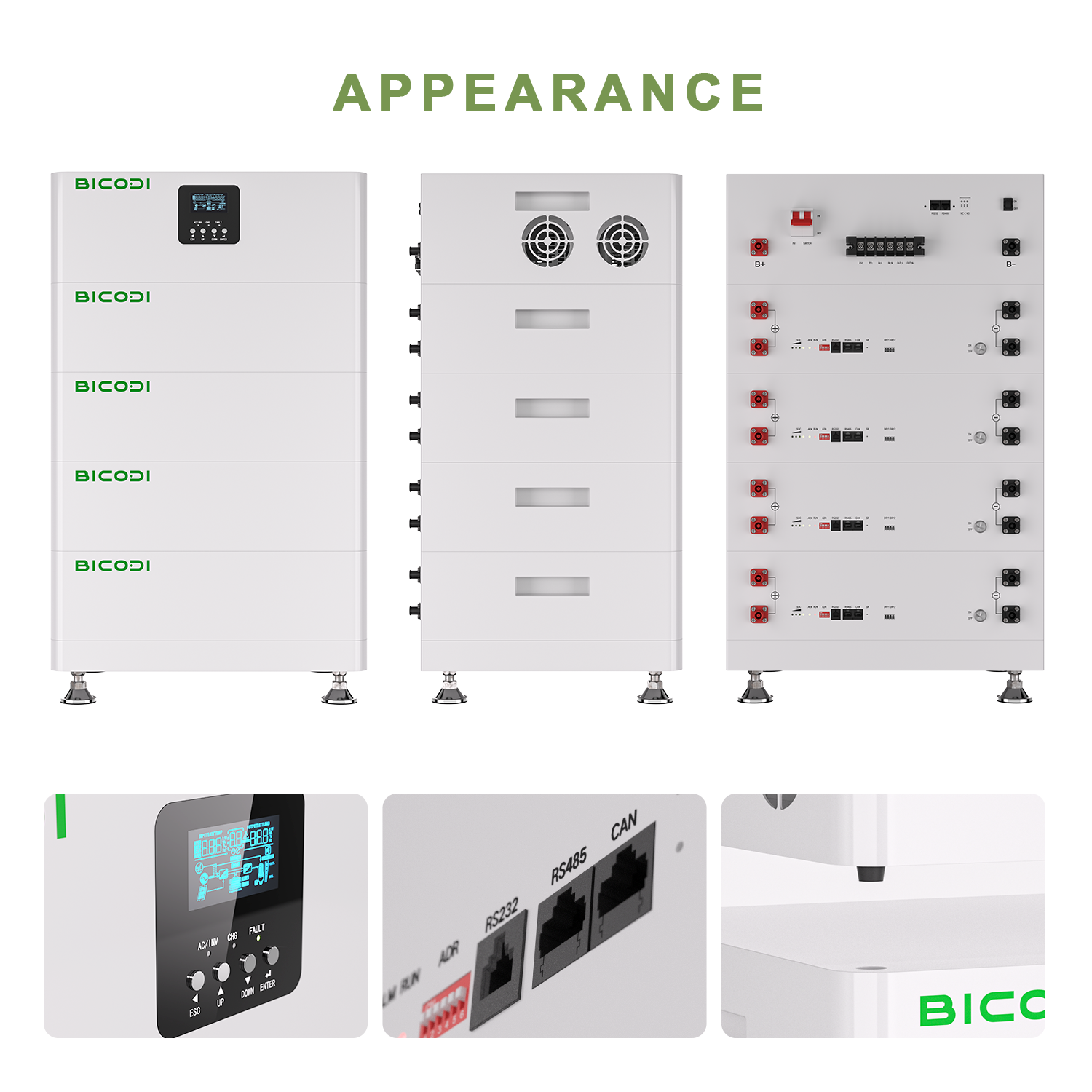

The communication interface is CAN/RS485

48V Base

Easy to measure: can be connected in parallel to 48V base

Integrated inverter design

More aesthetically pleasing, eliminating tedious installation steps

Stack design

Smaller footprint, more convenient for later expansion

Safety

Smart BMS is safer

High energy cost

long life cycle and good performance

PRODUCT DETAILS

High -efficiency: Our products have higher energy density than other competitors, which means longer battery life and higher convenience.

Safe and reliable: Our battery has undergone strict quality control and safety tests to ensure its high stability and reliability.

The concept of environmental protection: Our products follow the principles of environmental protection during the production process, and adopt renewable resources and sustainable production methods to be committed to reducing the impact on the environment.

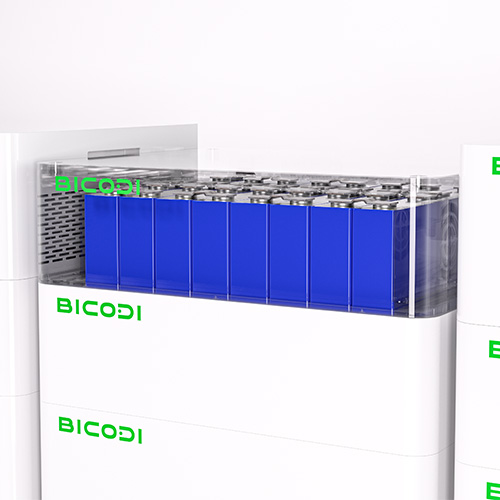

BDF048L05-2205 details oputo battery cell

FAQ FOR PORTABLE POWER STATION

What brand of the battery cell do you use?

EVE, Greatpower, Lisheng… are the mian brand we ues. As the shortage of cell market, we usually adopt the cell brand flexibly to ensure the delivery time of customer orders.
What we can promise to our customers is we ONLY use grade A 100% original new cellls.

How many year of your battery's warranty?

All of our business partner can enjoy the longest warranty 10 years!

Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye, Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect...

How do you offer after-sales service to solve product problem？

We have professional engineers to provide technical service remotely. If our engineer diagnoses that the product parts or batteries are broken, we will provide a new part or battery to the customer free of charge immediately.

What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3, MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.

More Q&A

Previous: 10KW-15KW High voltage wall mounted home photovoltaic energy storage Lifepo4 battery 180V-280V

Next: 1KW-8KW High Frequency Hybrid Inverter Solar photovoltaic panel household inverter

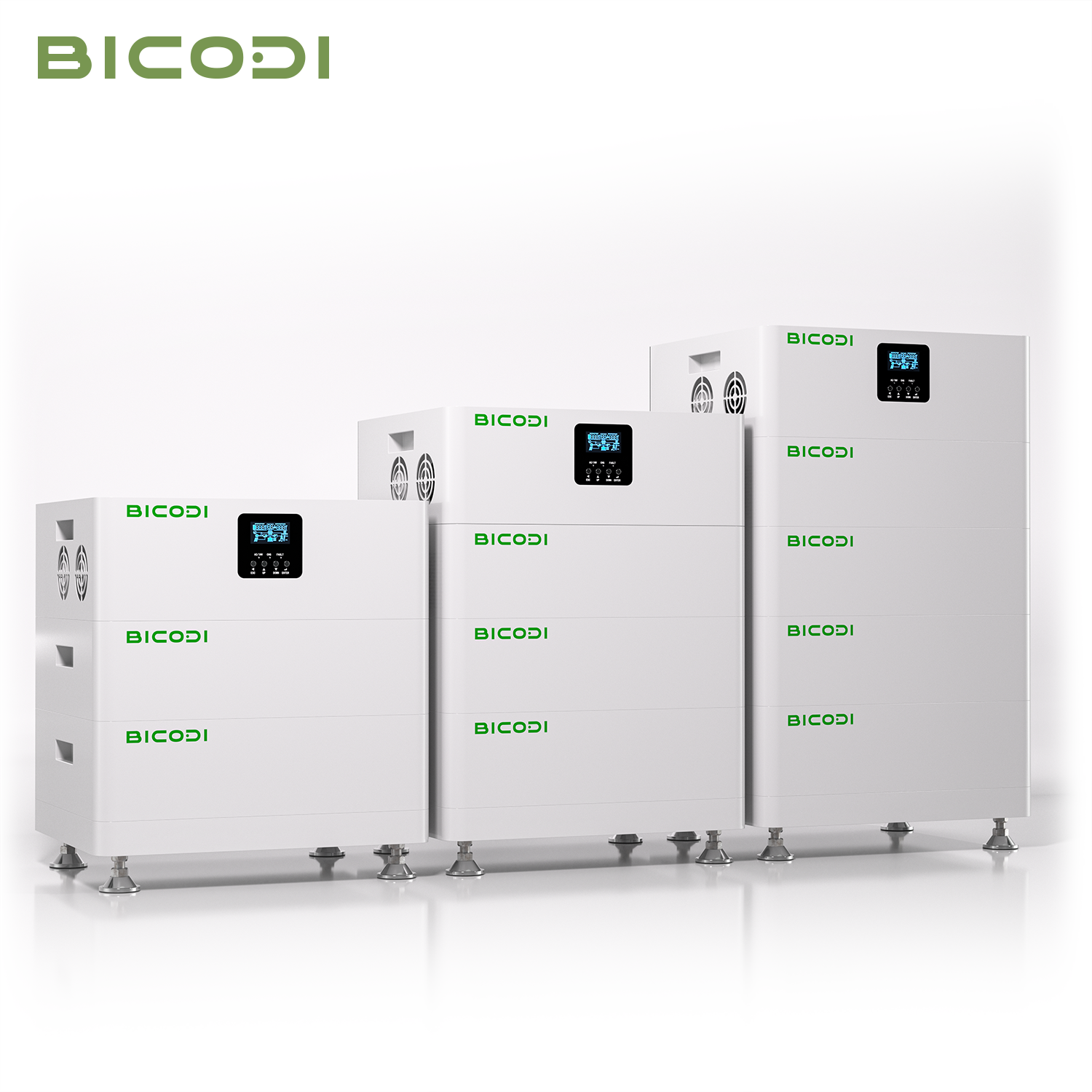

Model	BDF048L05-2205	BDF048L10-2205	BDF048L15-2205	BDF048L20-2205
Battery
Moudles	1	2	3	4
Power	5.12kWh	10.24kWh	15.36kWh	20.48kWh
battery capacity	100Ah	200Ah	300Ah	400Ah
Weight	68.6kg	111.4kg	154.1kg	196.9kg

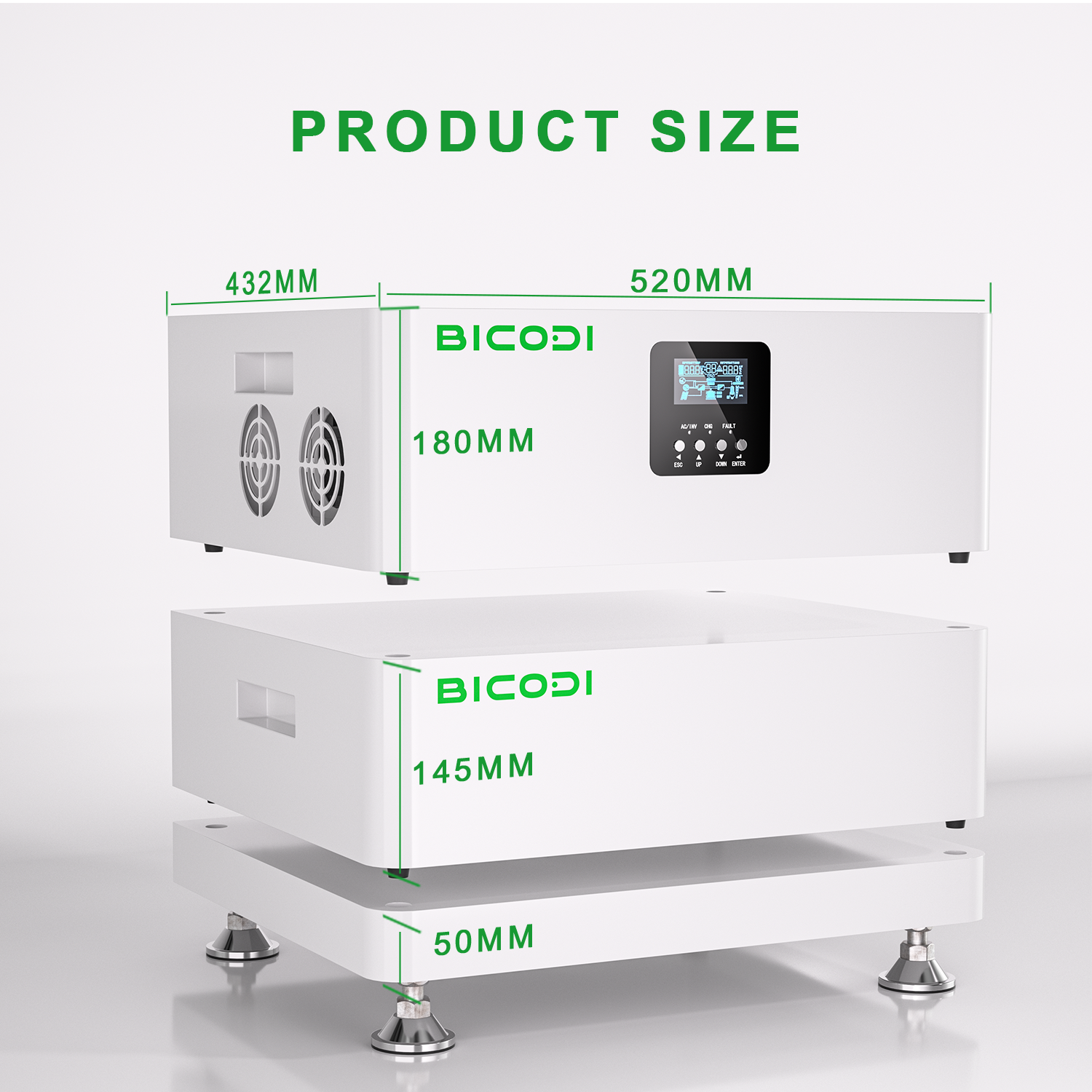

Dimension( L x W x H)	520x432x448mm	520x432x608mm	520x432x768mm	520x432x928mm
Battery type	LiFePO4
Rated voltage	51.2V
Working voltage range	42V~58.4V
Max charging current	100A
Max discharging current	100A
DOD	90%
Lifespan	6000cls
Photovoltaic and AC charging
PV charging mode	MPPT
Max PV input power	5500W
MPPT range(V)	120V~500V
Optimal voltage range for PV	300V~400V
Max PV charging current	100A
Max AC charging current	60A
Max PV&AC charging current	100A
AC input
rated voltage	220/230/240VAC
Input voltage range	154-264VAC(APL mode）；185-264VAC（UPS mode）
Frequency	50/60Hz（自适应）
AC output
rated power	5000W
output voltage	220/230/240VAC±5%
output frequency	50/60Hz±1%
output waveform	Pure sinewave
transfer time	Computer（UPS mode）10ms，Home appliance（APL model）20ms
Peak power	10000VA
overload protection	105%~150%load :21s 150%~200%load :11s >200%load ：400ms
Peak efficiency	>94%
Environment
Communication	RS485/WIFI
Storage temperature	15~35℃
Operating temperature	0~40℃
Humidity range	5~95%
Working altitude	<2000m
Noise	≤50dB
IP grade	IP20
Working environment	Indoor
Installation way	Floor stacking
