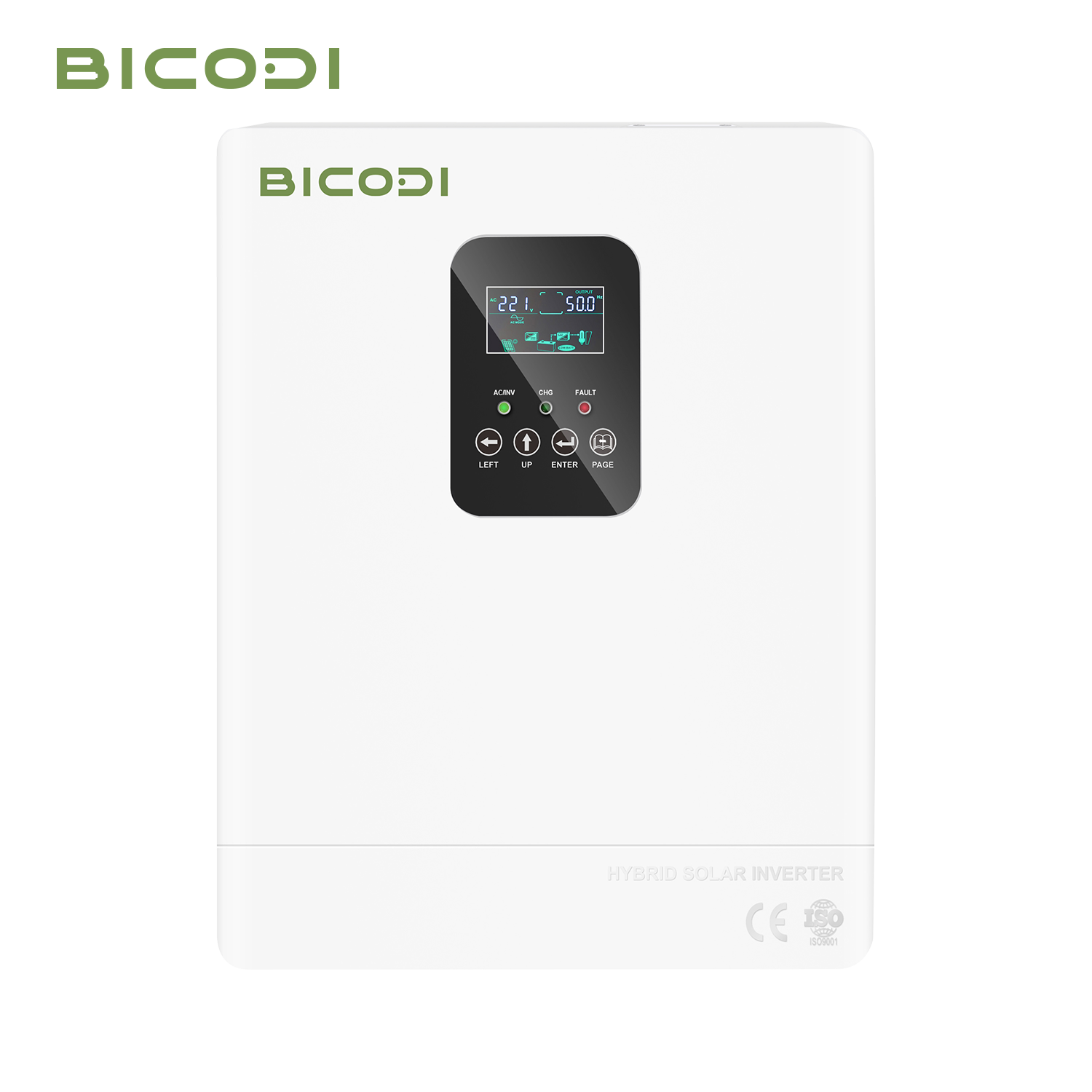

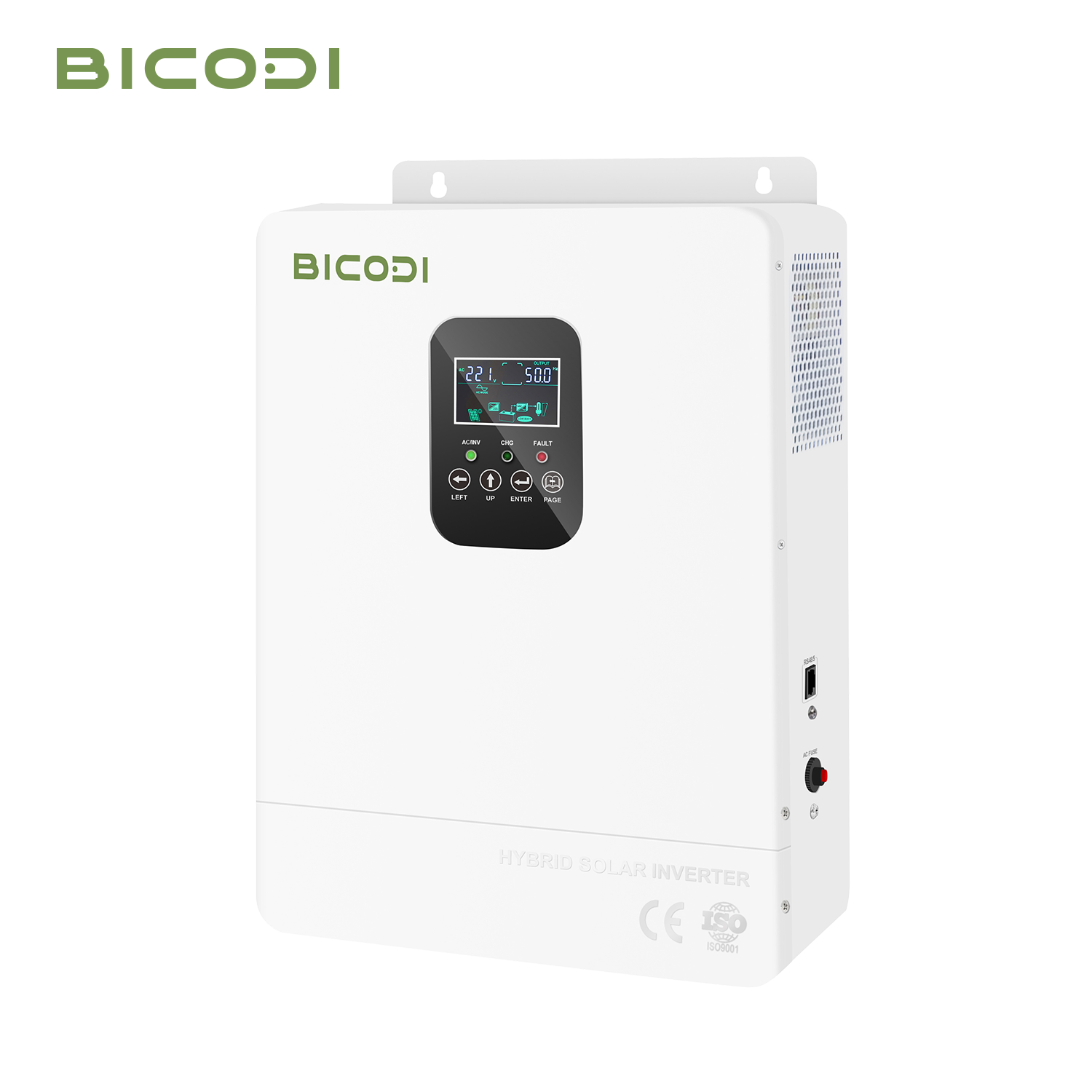

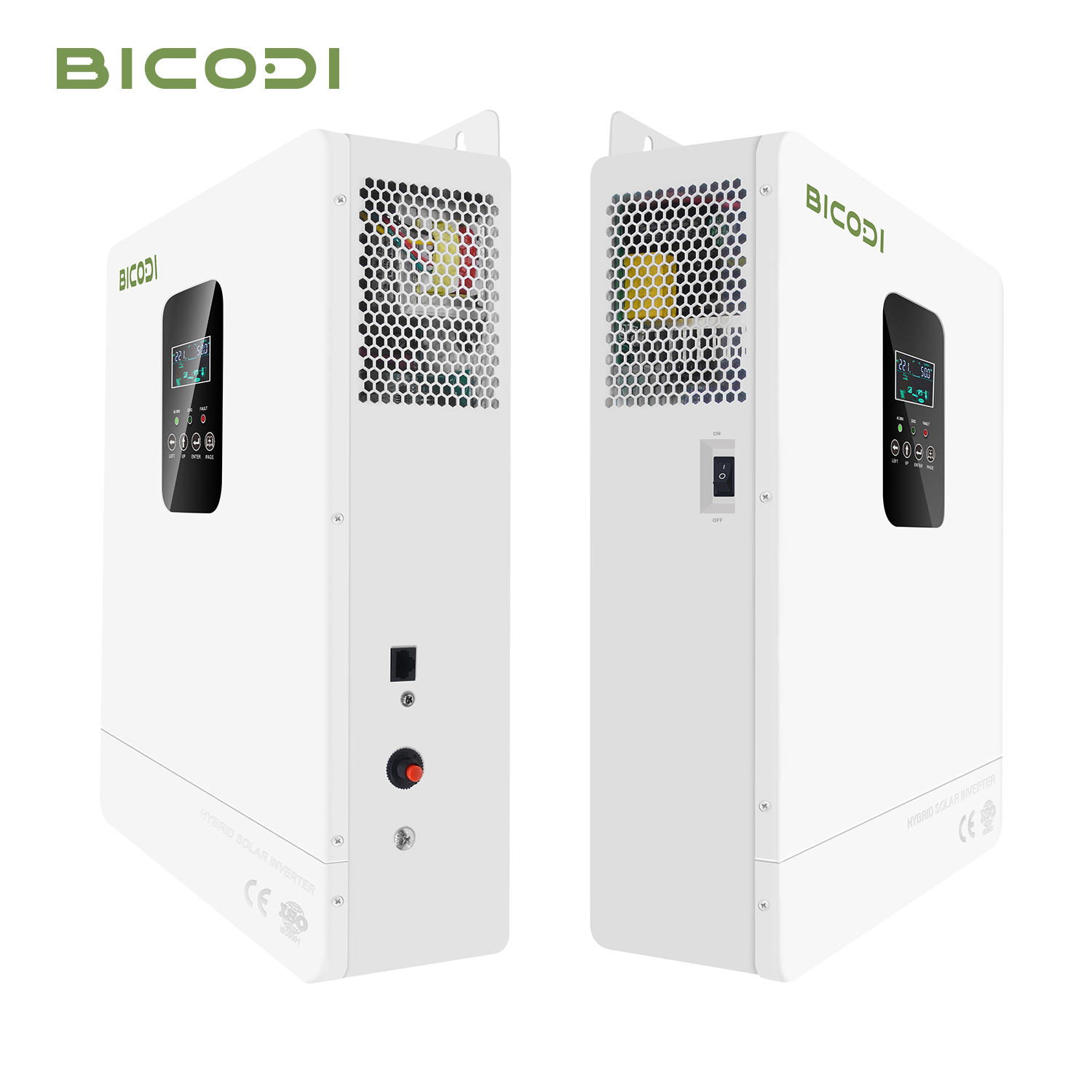

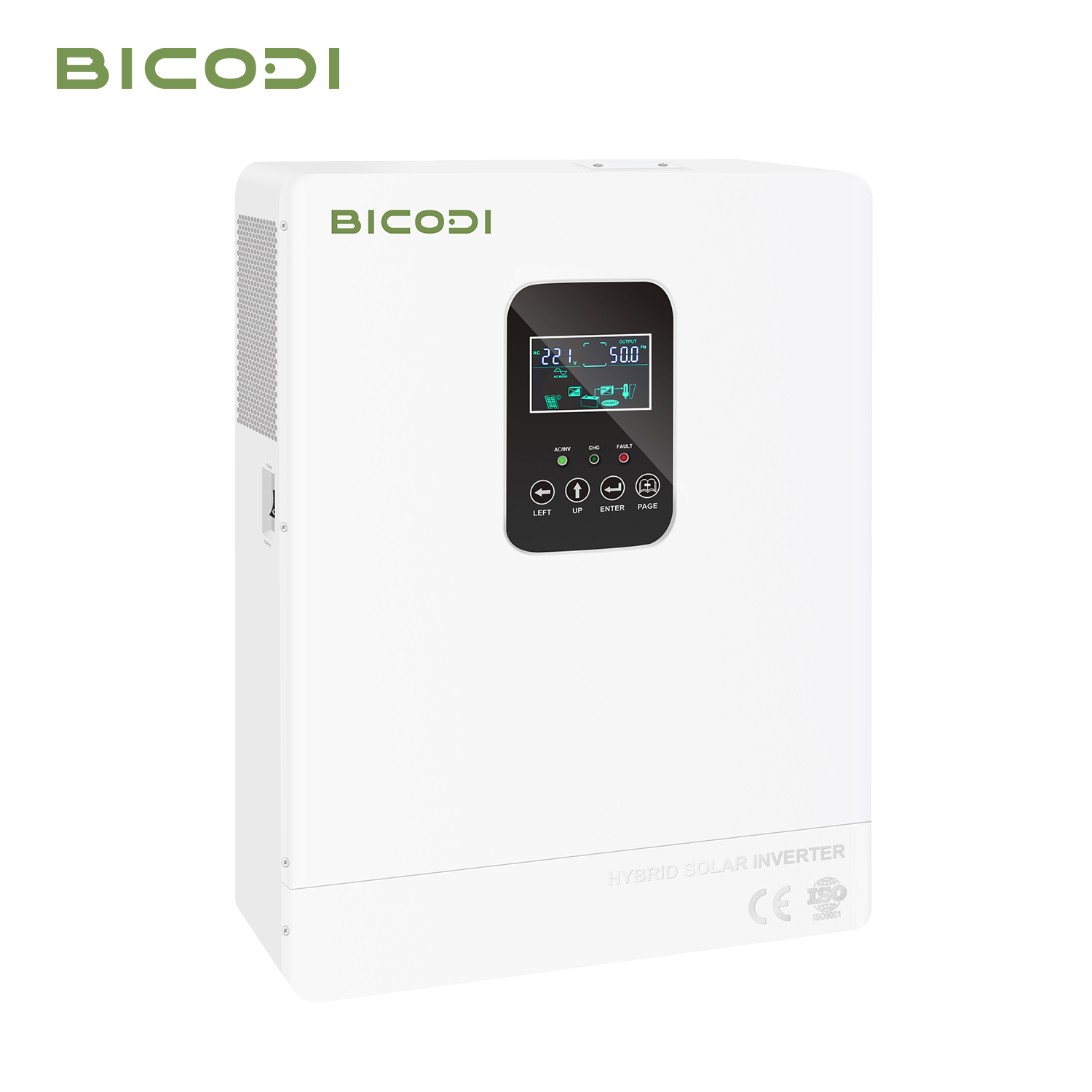

1KW-8KW High Frequency Hybrid Inverter Solar photovoltaic panel household inverter

Short Description:

High-frequency, high power density, high efficiency, and low no-load loss.
Can setting charge and discharge voltage parameters, suitable fordifferent types of batteries.
Can setting the charging current, the user’s battery capacity configurationis more flexible.
Can setting the output voltage/frequency to adapt to different grid
Support gas generator input, suitable for different applications.

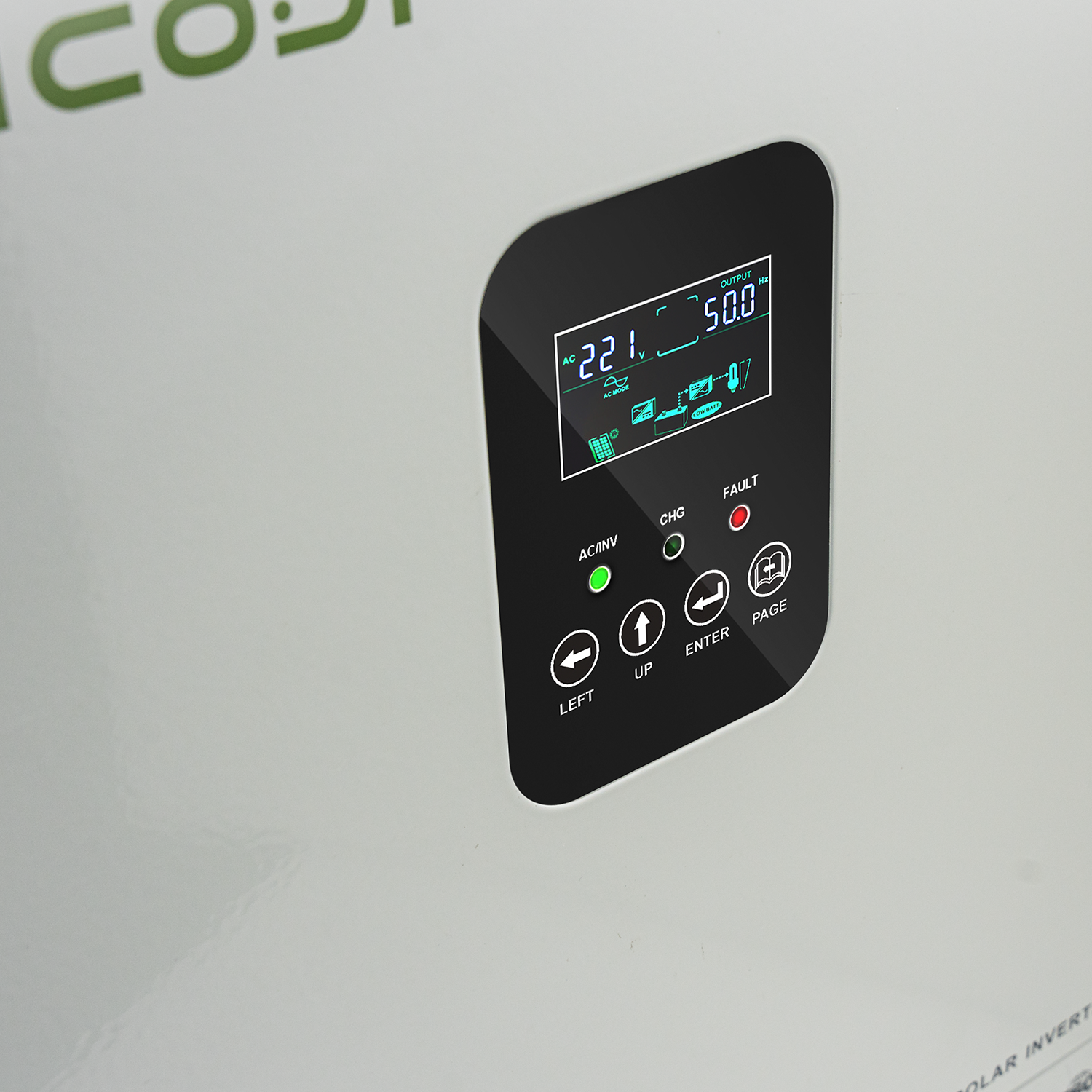

LED+LCD display is easy to operate, and the operating data is show clear.

Basic Parameters

Name: HP PRO-T

Battery Type: Lead-acid battery/Lithium battery/Custom battery

Rated Power: 1000W-8000W

Rated Input Voltage: 220V-250V

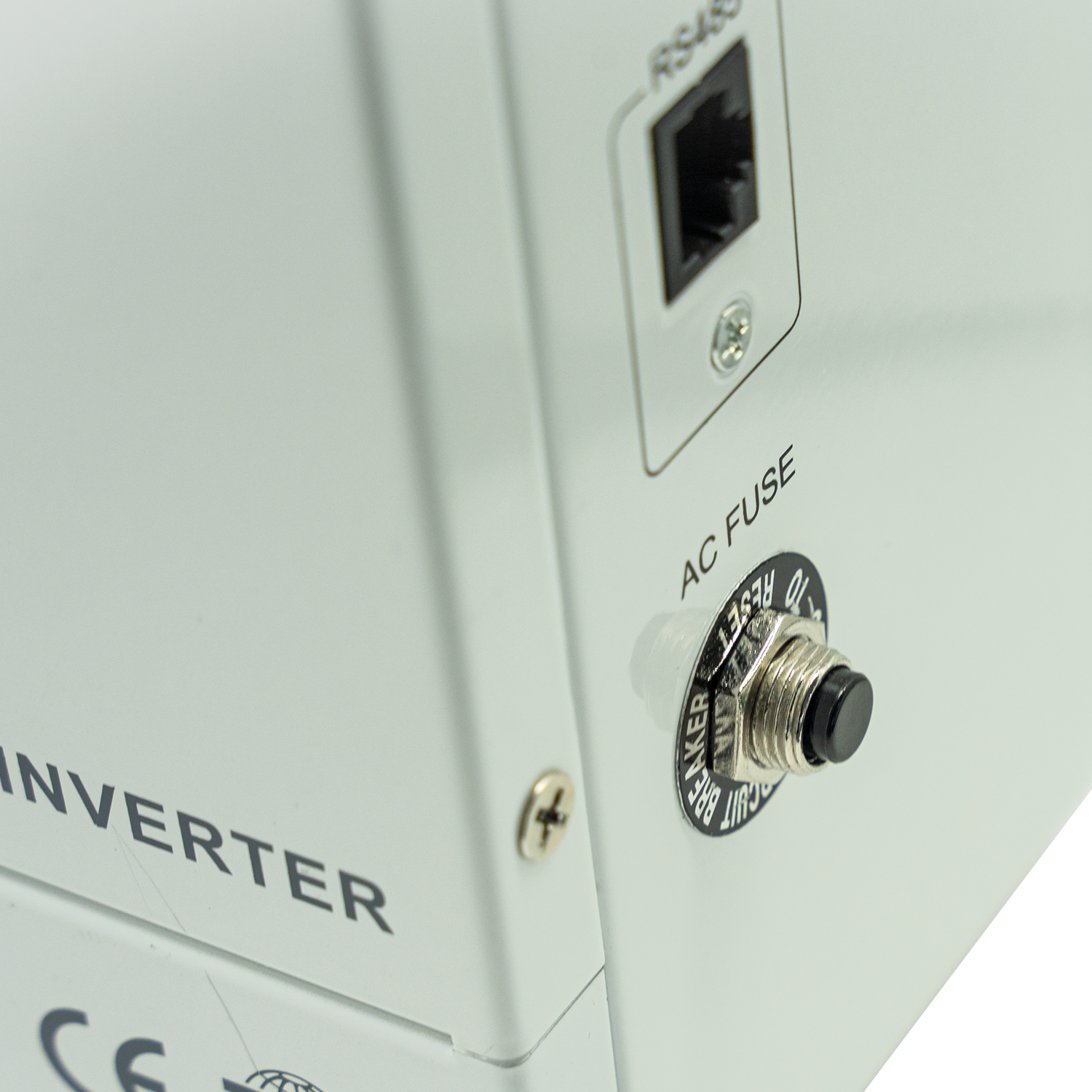

Communication: RS485 Communication / RS232 / Mobile APP (WIFl monitoring or GPRS monitoring)

Send email to us Datasheet Download

Product Detail

PARAMETER

Product Tags

Inverter Functional Features

Reliability Safety Capacity

Support intelligent EMS management function;
Support for automatic switching between and off grid, ensuring that important loads do not lose power when off grid;

Support multi machine parallel connection;
Support flexible connection of diesel generators;
Compatible with lead-acid and lithium-ion battery access;

Passed IEC/EN62109-1/-2, IEC/EN62477-1, South Africa NRS097-2-1; 2017, IEC/EN 61000-6-1, IEC/EN 61000-6-3 testing certification;

PRODUCT HIGHLIGHTS

fan

Active cooling design

battery Type

Lead-acid battery / Lithium battery / Custom battery

WiFi/GPRS

Real time monitoring

IP65

Ingress protection

Over-Voltage Protection

Over-Temperature Protection

Over-Charge Protection

Overload Protection

PRODUCT DETAILS

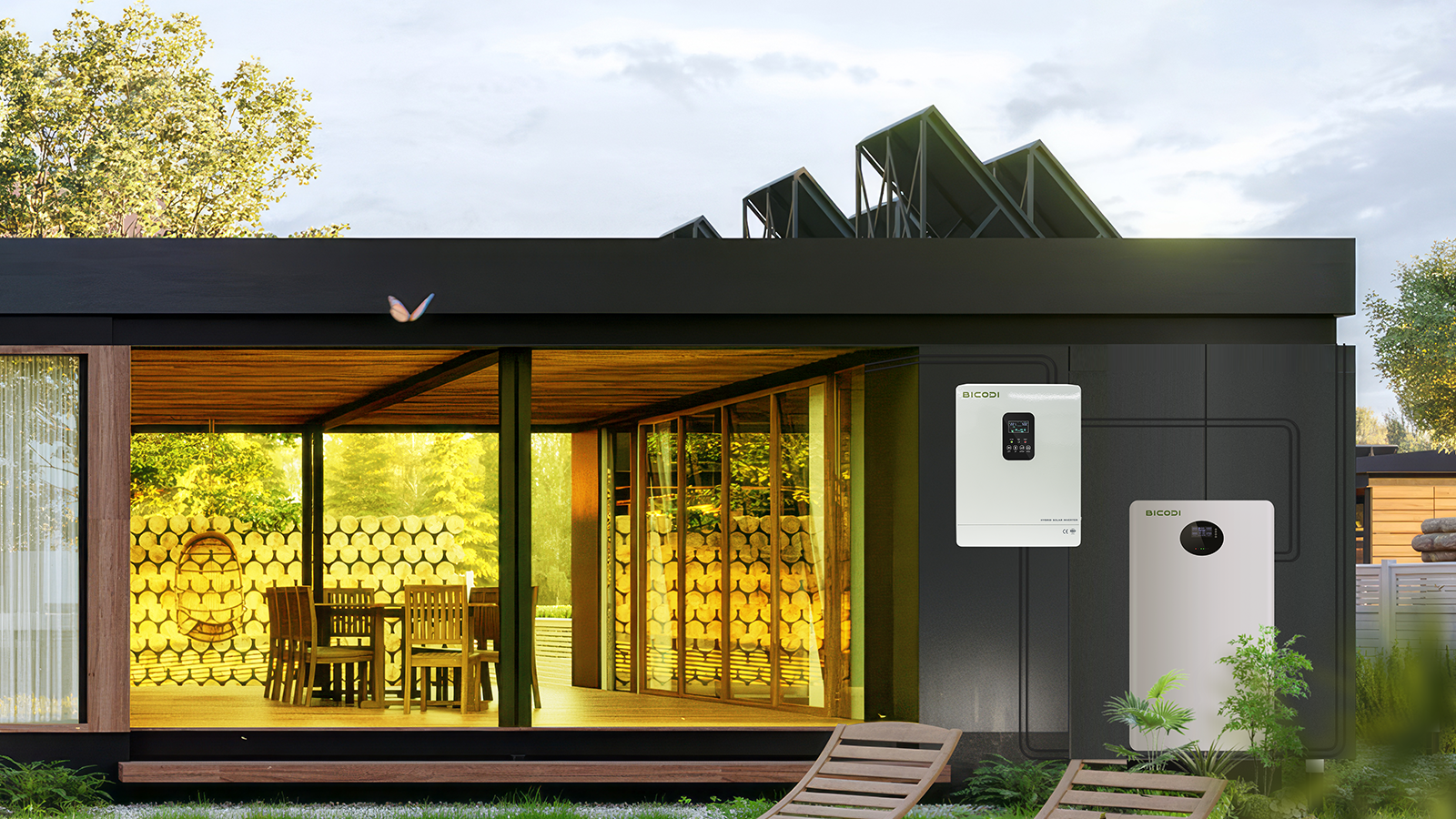

Low voltage single-phase hybrid inverter, supporting photovoltaic, battery, diesel generator, power grid, load simultaneous input, built-in self use, peak shaving and valley filling, backup power supply and other application modes, supporting multi machine parallel connection, suitable for various household energy storage application environments.

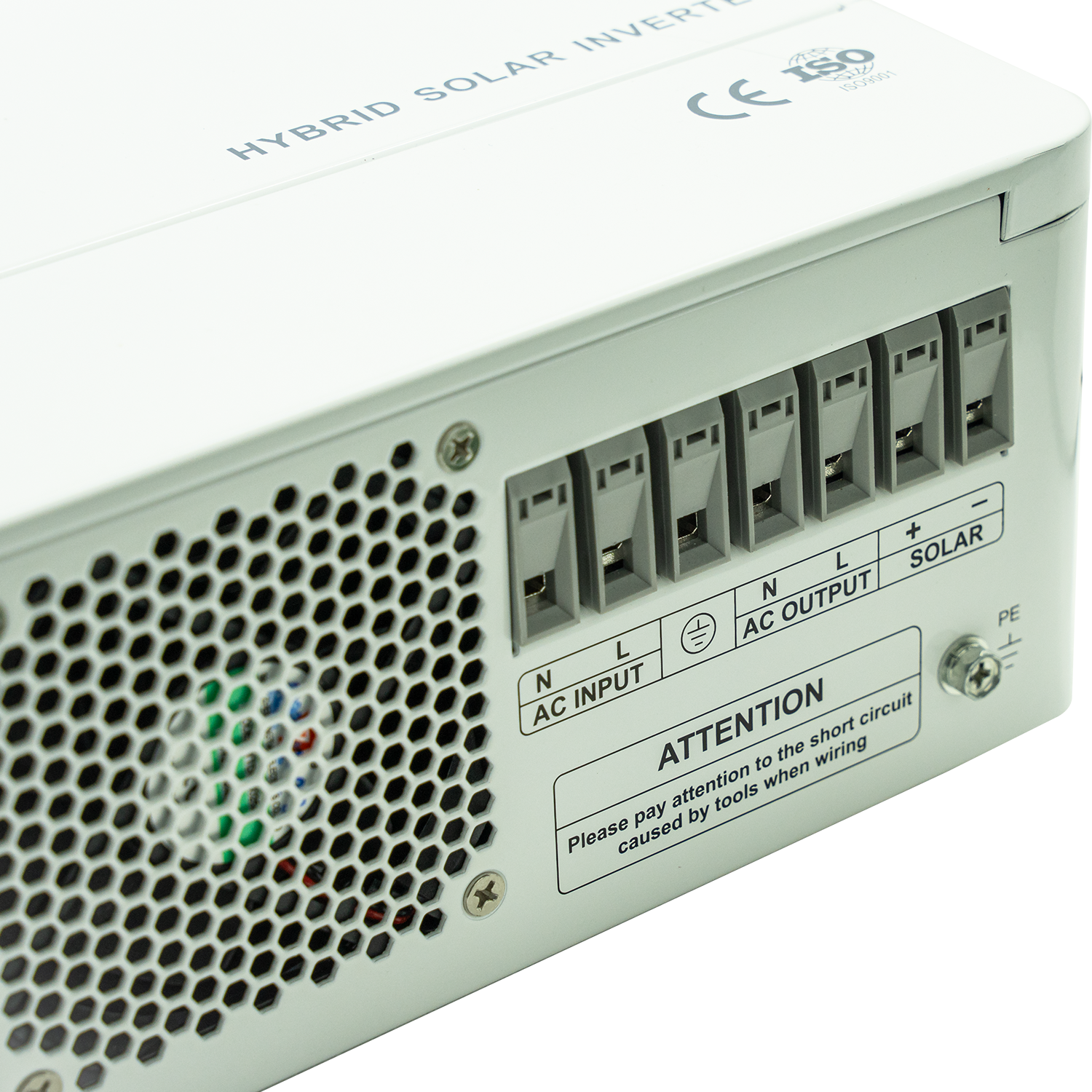

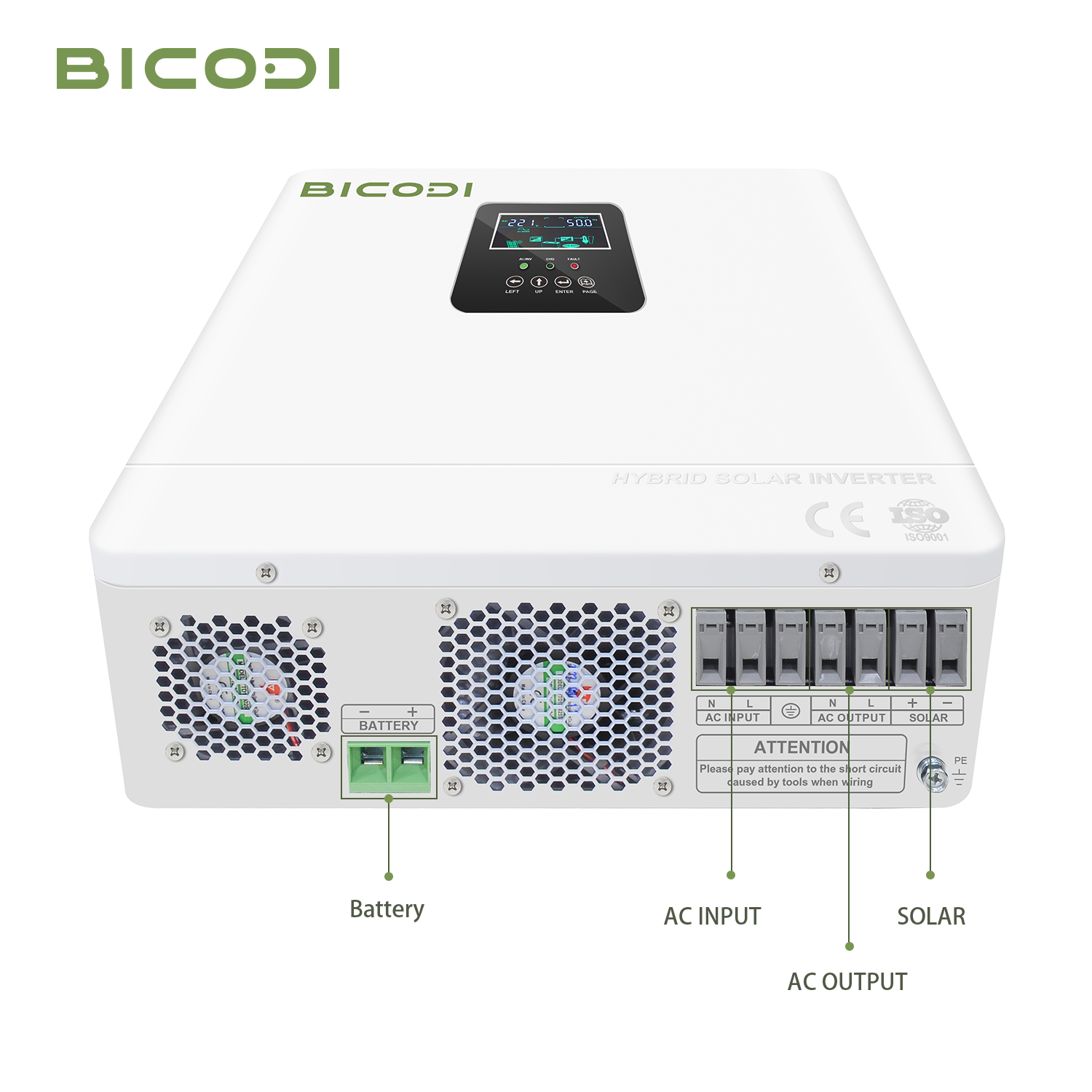

BD6200-48Li inverter Product interface diagram

FAQ FOR PORTABLE POWER STATION

What brand of the battery cell do you use?

EVE, Greatpower, Lisheng… are the mian brand we ues. As the shortage of cell market, we usually adopt the cell brand flexibly to ensure the delivery time of customer orders.
What we can promise to our customers is we ONLY use grade A 100% original new cellls.

How many year of your battery's warranty?

All of our business partner can enjoy the longest warranty 10 years!

Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye, Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect...

How do you offer after-sales service to solve product problem？

We have professional engineers to provide technical service remotely. If our engineer diagnoses that the product parts or batteries are broken, we will provide a new part or battery to the customer free of charge immediately.

What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3, MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.

Previous: Stacked Integrated Household Energy Storage Lifepo4 Lithium Battery With Inverter Integrated 5kw-90kw

Next: OEM 6.2KW 60-500Vdc household solar photovoltaic panel inverter BD6200-48Li manufacturers and suppliers

Model: HP PRO-T	10212	15224	20224	32224	50248	72248	80248
Power
Rated Power	1000W	1500W	2000W	3200W	5000W	7200W	8000W
Battery
Standard Battery Voltage	12VDC	24VDC			48VDC
Battery Type	Lead-acid battery / Lithium battery / Custom battery
Maximum Charging Current (PV+AC)	120A	100A	110A	100A	100A	150A
Maximum PV Charging Current	60A	60A	60A	100A	100A	151A
Maximum AC Charging Current	60A	40A	50A	60A	60A	80A
MPPT Solar Charge Controller
Max PV Input Voltage(Voc)(At The Lowest Temperature)	120VDC			500VDC	500VDC
Maximum PV input Power/Tracking Channels	840W	1680W		4000W	6000W	4500Wx2
MPPT Tracking Voltage Range	15V-80VDC	30V-100VDC		120V-450VDC	120V-450VDC
Ac input
Rated input Voltage	220VAC 1230VAC/240VAC
AC Input Voltage Range	170VAC~280VAC(UPS mode) / 120VAC~280VAC (INV mode)
AC Input Frequency	43Hz~53Hz(50Hz)，53Hz~63Hz(60Hz)
AC Output
Output Wave	Pure sine wave
Conversion Efficiency(lNV mode)	94% ( peak value)
Output Voltage/Frequency	220VAC+2%/230VAC+2% /240VAC+2%, 50Hz+1% or 60Hz+1% (INV mode)) follow input (mains mode)
Other
Protection	Battery undervoltage protection / Battery overvoltage protection / Overload power protection / Inverter output short circuit protection / Temperature protection
Protection Degree	IP20
Display	LCD+LED
Cooling Method	Cooling fan in intelligent control
Communication	Rs485 communication/RS232, mobile APP (WlFl monitoring or GPRS monitoring)
Working Mode (configurable)	Mains priority / Battery priority / Photovoltaic priority
Operating Temperature	-15℃℃~40℃
Relative Humidity	0%~95%,no condensation
Dimensions and Weight
Product Size (LWHmm)	35527291.5			400315101.5	440342101.5	525355115
Package Size(LWHmm)	443350187			488393198	528420198	615435210
N.W.(kg)	6.5			8.5	10	14
G.W.(kg)	7.5			9.5	11	15.5
