1. Safety: electrical safety; battery voltage protection; electronic security charging; release a strong defense; short-term protection; battery protection, over-temperature protection, MOS over-temperature protection, battery over-temperature protection, balancing
2.Compatible with inverter brands: Victron, SMA, GoodWe, Growatt, Jinlang, Deye, Sofar Solar, Voltronic Power, SRNE SoroTec Power, MegaRevo, etc. more than 90% of the sales in the market.
3.Checking parameters: total electricity; current, temperature; battery power; battery voltage difference; MOS temperature; circular data; SOC; SOH
We have a complete automation family energy storage production line, and Nissan can be as high as 500 households. Equipped with laser welding machines and fully automated assembly lines.

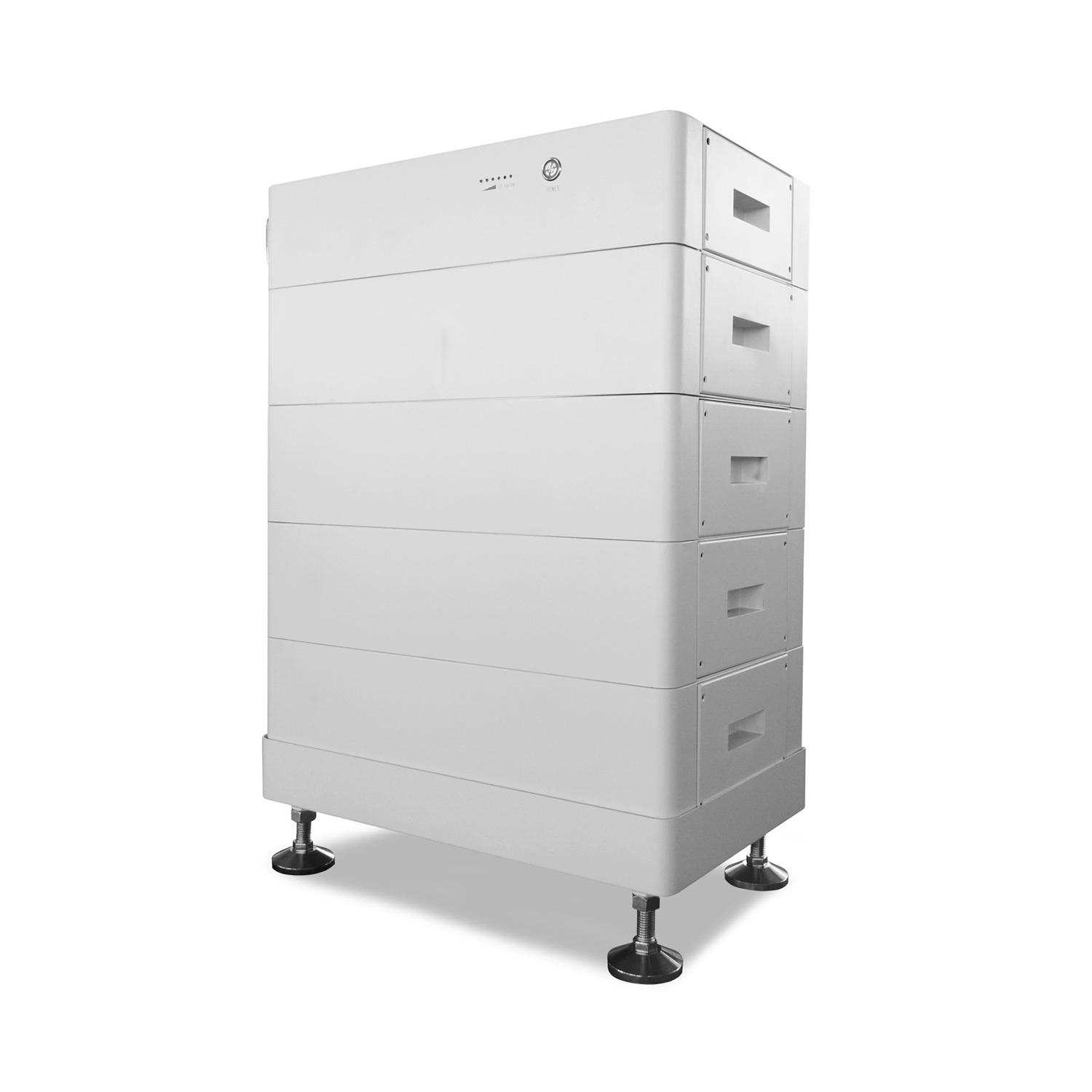

Model | BD BOX-HV |
Energy Capacity | 5.12kWh |
Nominal Voltage | 102.4V |
Operation Voltage Range |
94.4-113.6v |
Dimension (mm) | 424*593*355 |
Weight | 105.5kgs |
IP Protection | IP 65 |
Installation | Floor Installation |
Communication Mode | CAN,RS485 |
Compatible Inverter | Victron/ SMA/ GROWATT/ GOODWE/SOLIS/ DEYE/ SOFAR/ Voltronic /Luxpower More than 90% of the brands on the market |
Certification | UN38.3、MSDS、CE、UL1973、IEC62619(Cell&Pack) |

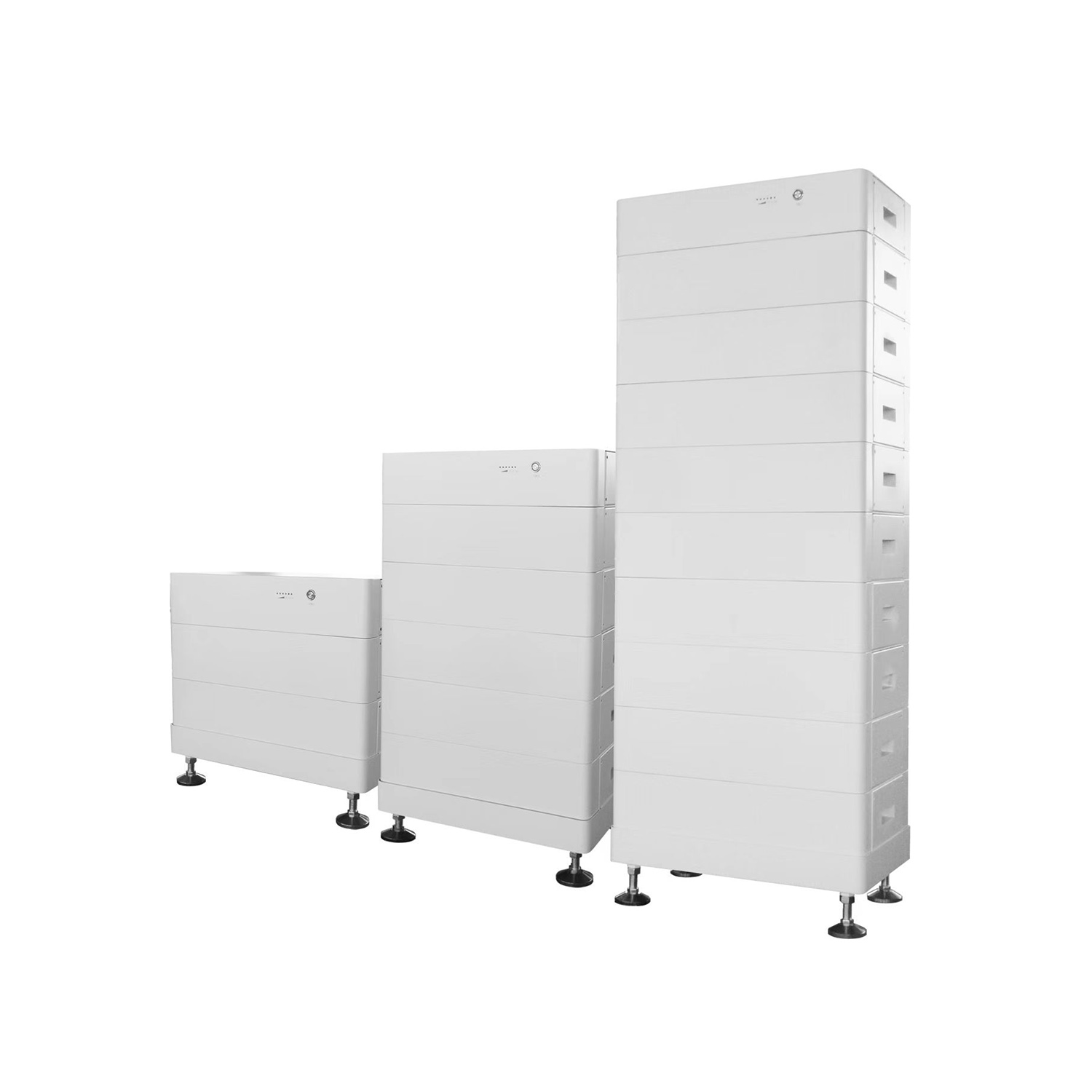

Maximum Number of Parallel | 16 |
Cooling Mode | Natural Cooling |
Warranty | 10 Years |
Cell parameters |
|
Rated voltage(V) | 3.2 |
Rated capacity(Ah) | 50 |
Charge Discharge Rate(C) | 0.5 |
Cycle Life (25℃,0.5C/0.5C,@80%DOD) |
>6000 |
Dimensions(L*W*H)(mm) | 149*40*100.5 |
Battery module parameters |
|
Configuration | 1P8S |
Rated voltage(V) | 25.6 |
Operating voltage(V) | 23.2-29 |
Rated capacity(Ah) | 50 |
Rated energy(kWh) | 1.28 |
Max continuous current(A) | 50 |
Operating temperature(℃) | 0-45 |
Weight(kg) | 15.2 |
Dimensions(L*W*H)(mm) | 369.5*152*113 |
Battery Pack parameters |
|
Configuration | 1P16S |
Rated voltage(V) | 51.2 |
Operating voltage(V) | 46.4-57.9 |
Rated capacity(Ah) | 50 |
Rated energy(kWh) | 2.56 |
Max continuous current(A) | 50 |
Operating temperature(℃) | 0-45 |
Weight(kg) | 34 |
Dimensions(L*W*H)(mm) | 593*355*146.5 |
