Wall mounted 10KW Residential Energy Storage Lifepo4 Battery BD048200P10

Short Description:

for daily energy storage. The capacity of model BD48100P10 is 10kWh, which can power a typical home for several hours. It is designed to be compatible with most solar panel systems and can be connected as a backup power supply in case of blackouts or emergencies. The built-in BMS protection ensures safety and reliability by monitoring the battery’s performance and preventing overcharging, over-discharging, and short circuits. The wall-mounted design saves space and makes installation easy. With its long life span and high safety standards, model BD48100P10 is an excellent choice for households looking for reliable and efficient energy storage solutions.

Basic Parameters

Name: BD048200P10

ominal voltage: 48v

Standard capacity: 200Ah lithium battery

battery type: Lifepo4

Output Waveform: Pure Sine Wave

Send email to us Datasheet Download

Product Detail

Product Parameters

Product Tags

DESCRIPTION

MULTIFUNCTIONAL OUTPUTS

1. Safety: electrical safety, battery voltage protection, electronic safe charging, strong release protection, short-term protection, battery protection, overheating protection, MOS overheating protection, battery overheating protection, balance

2. Compatible with inverter brands: Victron, SMA, GoodWe, Growatt, Jinlang, Deye, Sofar Solar, Voltronic Power, SRNE SoroTec Power, MegaRevo and more than 90% market sales.

3. Detection parameters: total power, current, temperature, battery power, battery voltage difference, MOS temperature, cycle data, SOC, SOH

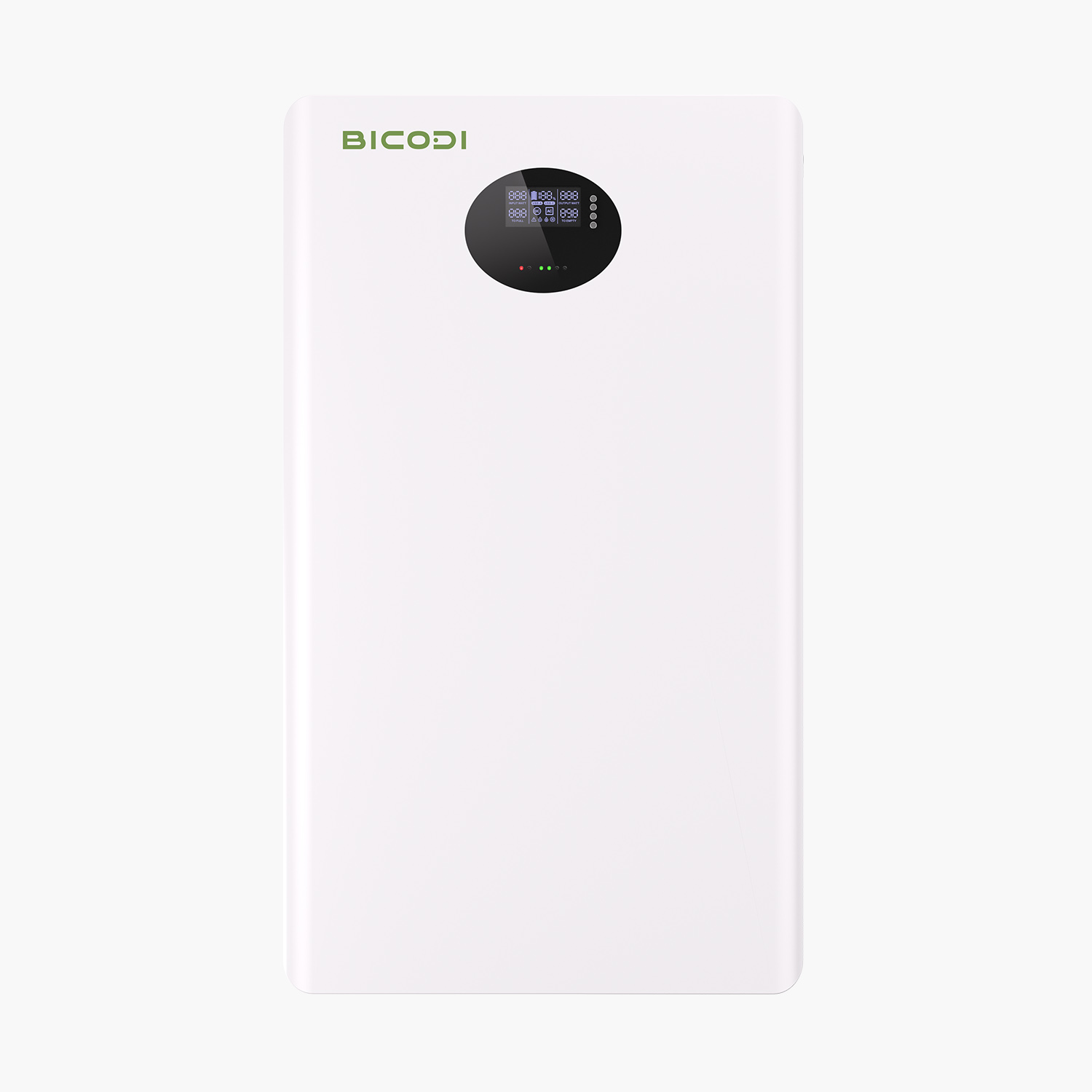

Wall mounted 10KW Residential Energy Storage System BD048200P10 -3

PRODUCT HIGHLIGHTS

10KWh

Maximum capacity is 10kWh Smaller volume gets more battery life

lilifepo4 battery

Super stable lilifepo4 lithium battery chemistry, 6000+ cycle life

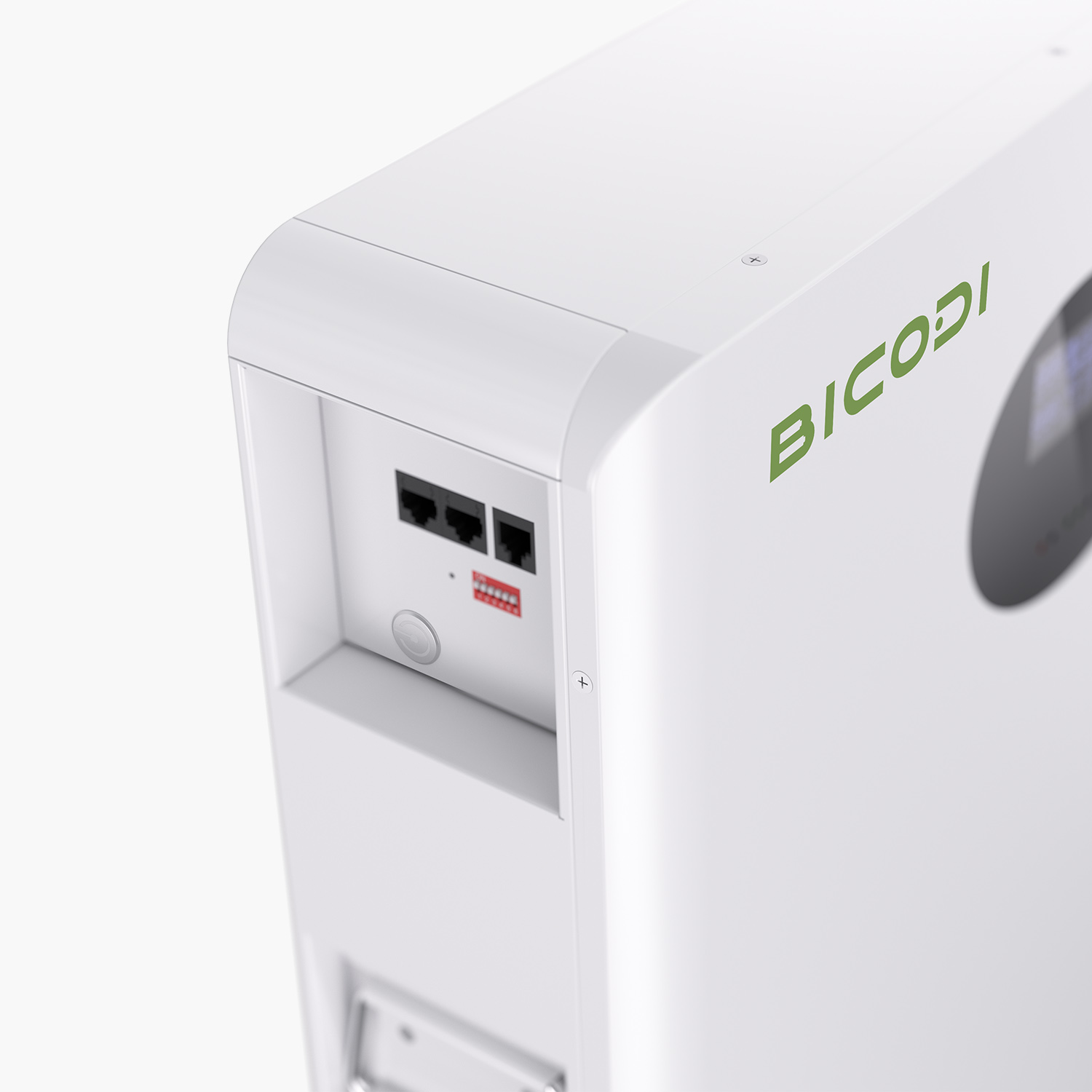

The communication

The communication interface is CAN/RS485

48V voltage design

International universal output voltage 48V design, more safe and reliable

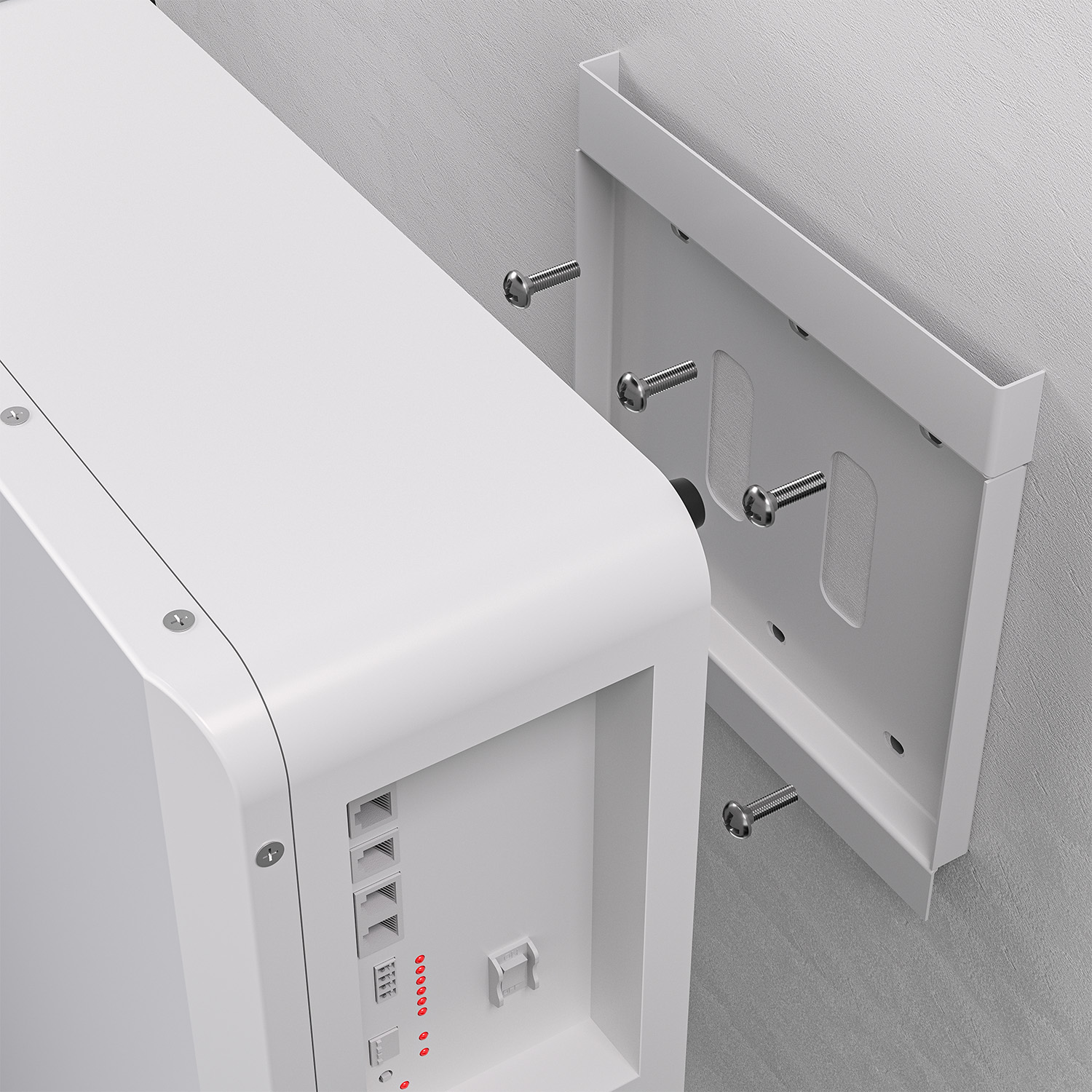

Wall mounted design

saves more space and is also beneficial for daily maintenance

Simple installation

Adopting a wall mounted installation method, which is more user-friendly for compact spaces

BMS intelligent management system

accurately control the number of charging and discharge of each battery cell, and monitor the battery life

Class A battery cell

Use grade A brand new cells,long cycle life and higestate of health

PRODUCT DETAILS

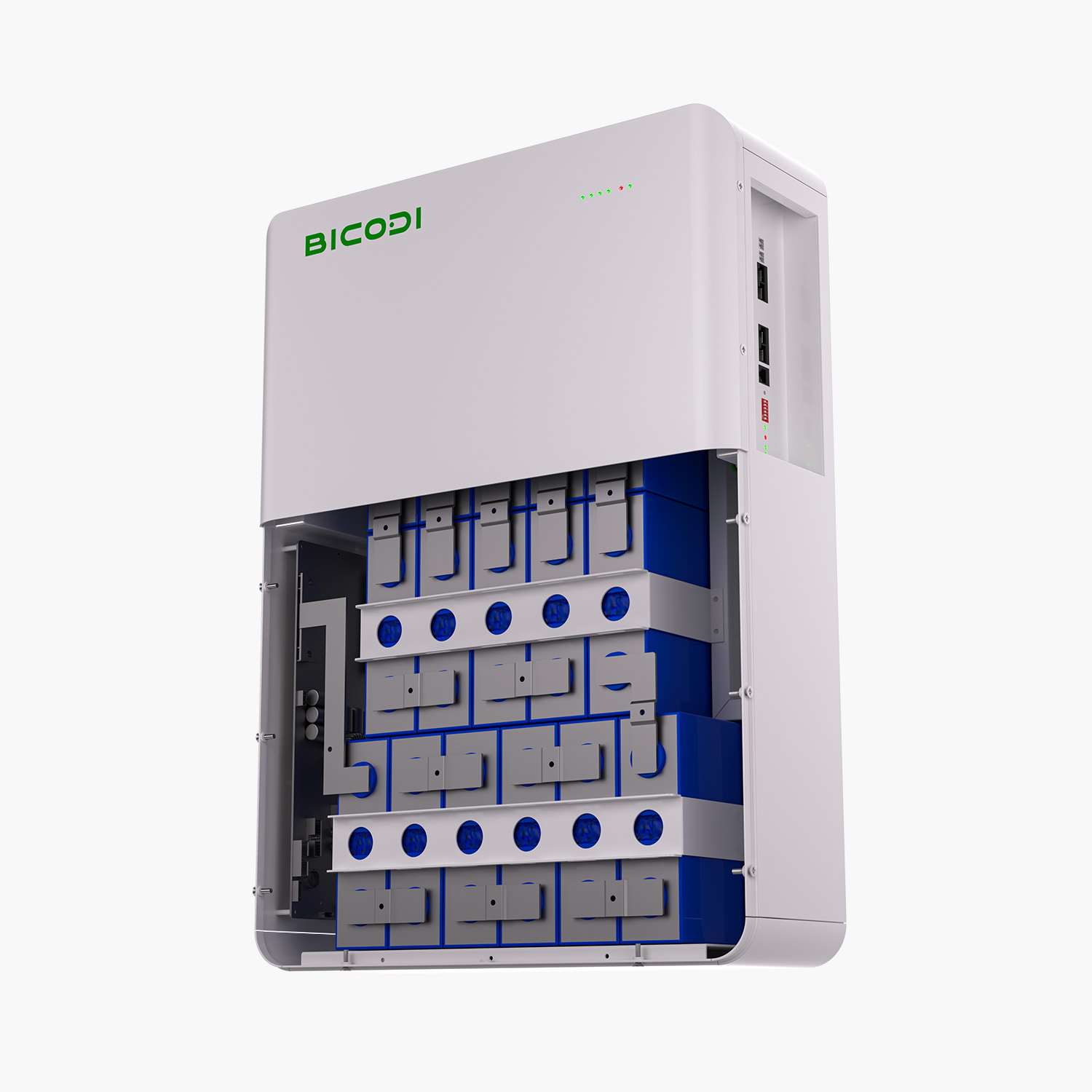

The BD048100P05 shell adopts a 1.5 mm thick sheet metal design. While ensuring the strength of the product's fuselage, it takes into account the aesthetic and spatial experience. The current popular CAN/RS485 communication mode adopted by the communication interface is compatible with your inverter to the greatest extent (if you are not sure about your product communication protocol, contact us to get the relevant information at any time) The battery part uses lithium iron phosphate core (Lilifepo4) with a long -lasting life, ensuring that each cell is a product of A -grade products, and guarantees more than 6,000 cyclic life. Our products have a variety of advantages such as simple installation, long life, and ten years of warranty. They support a variety of different freight methods. Welcome to contact us!

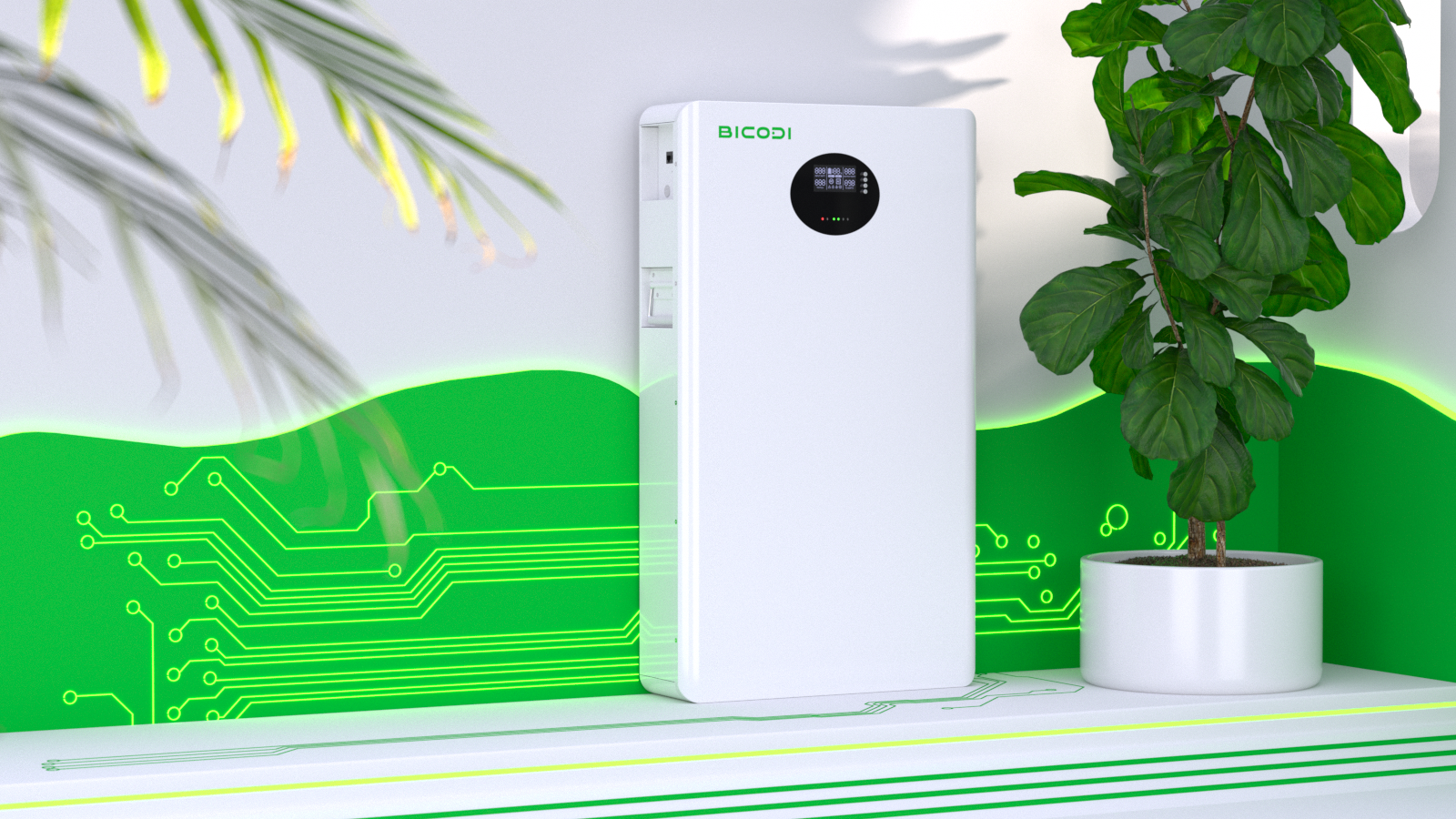

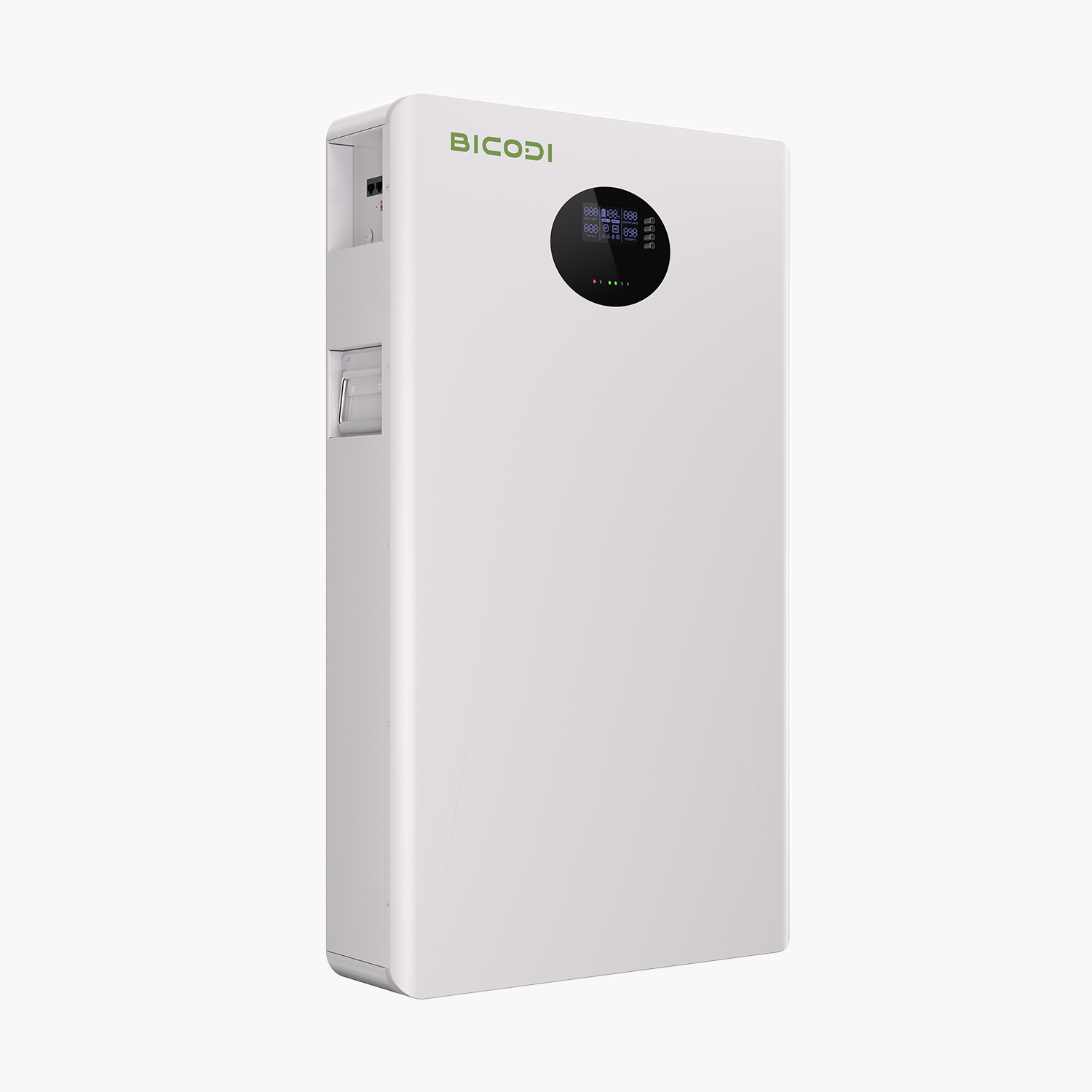

Wall mounted 10KW Residential Energy Storage System BD048200P10

BD048100P05 The wall mount is a 5kw household energy storage battery

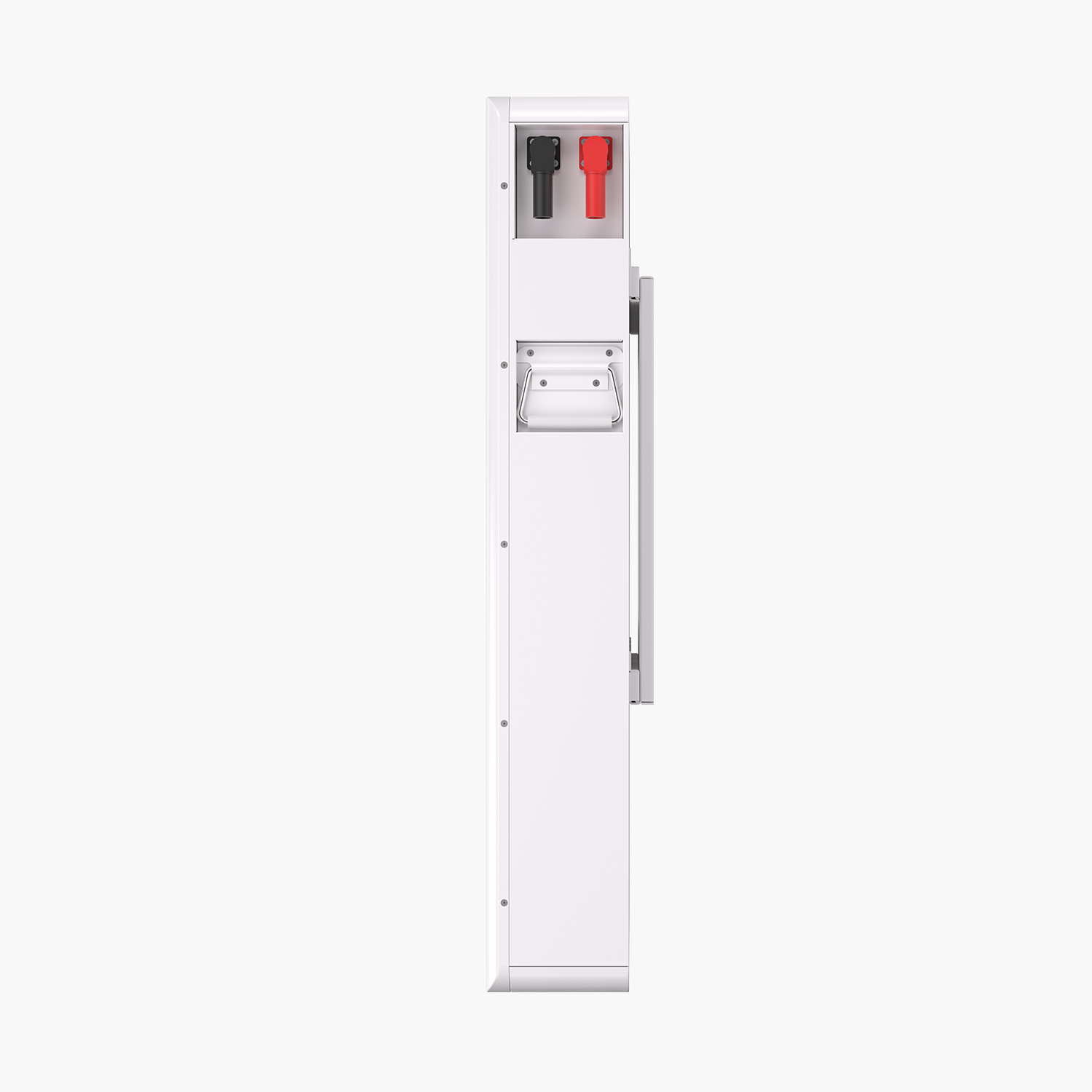

Wall mounted 10KW Residential Energy Storage System BD048200P10 -1

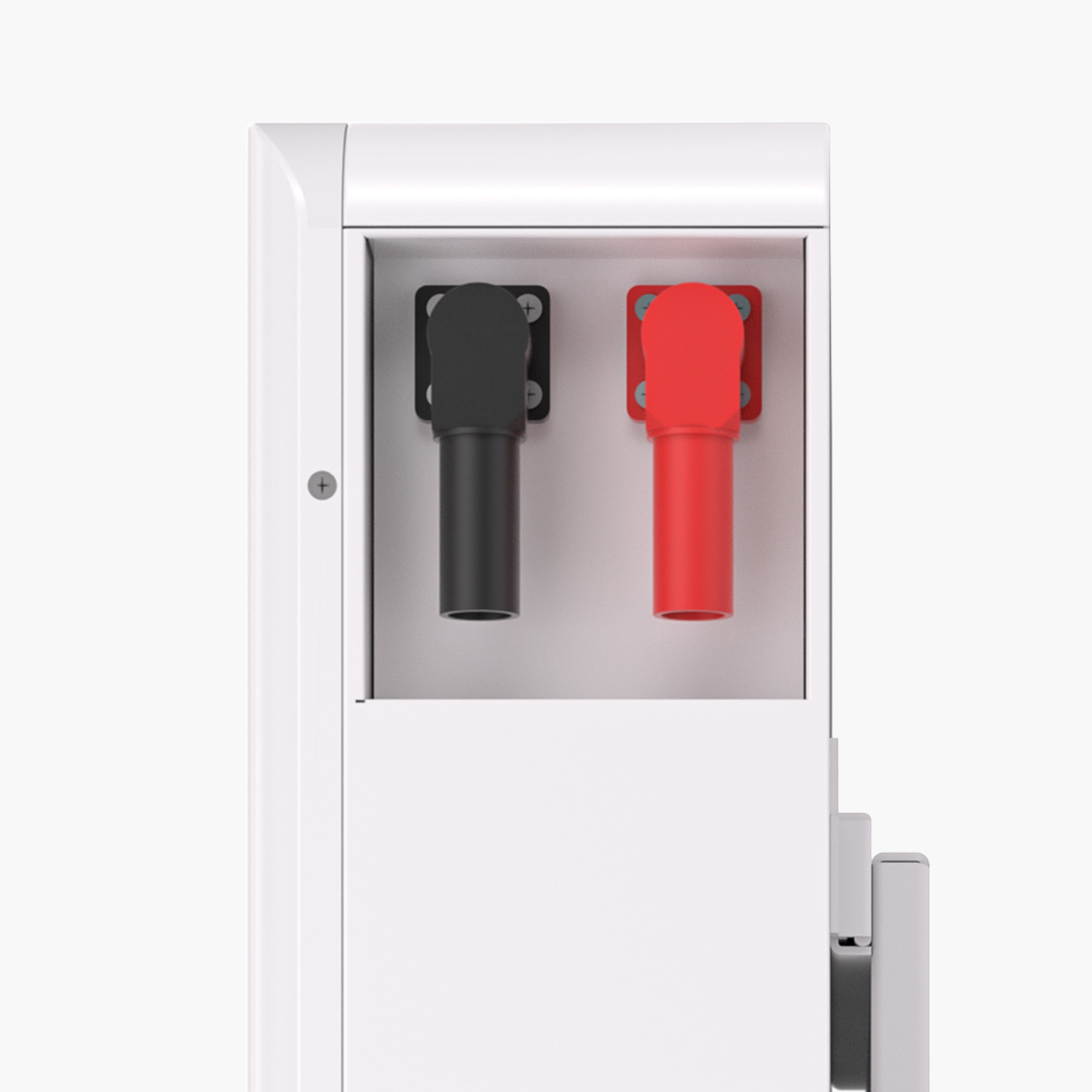

Wall mounted 10KW Positive and negative interface

FAQ FOR PORTABLE POWER STATION

What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3, MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.

Do you offer OEM/OEM service?

Yes, we support OEM/ODM service, like logo customization or developing product function.

Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye, Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect...

More Q&A

Previous: Residential Energy Storage Lifepo4 Battery Wall mounted 5KW BD048100P05

Next: Industrial ternary lithium 18650 battery pack 3000mAh 18.5V electric drill, saw board car lithium battery pack

Model	BD048200P10
Battery Type	LiFePO4
Capacity	200 AH
Weight	93.5 KG
Dimension	860500138mm
IP Grade	IP21
Battery Max Charge&Discharge Continuous Power	10.2 kWh
DOD @25℃	＞90%
Rated Voltage	51.2V
Working Voltage Range	42V~58.4V
Designed Cycles Life	≥6000cls
Standard Continuous Charge & Discharge Current	0.6C(60A)
Max Charging Continuous & Discharging Current	200A
Discharge Temperature Range	-10~50℃
Charging Temperature Range	0℃-50℃
Communication Mode	CAN,RS485
Compatible Inverter	Victron/ SMA / GROWATT / GOODWE/SOLIS/ DEYE/ SOFAR/ Voltronic /Luxpower More than 90% of the brands on the market
Maximum Number of Parallel	16
Cooling Mode	Natural Cooling
Warranty	10 Years
Certification	UN38.3、MSDS、CE、UL1973、IEC62619(Cell&Pack)
