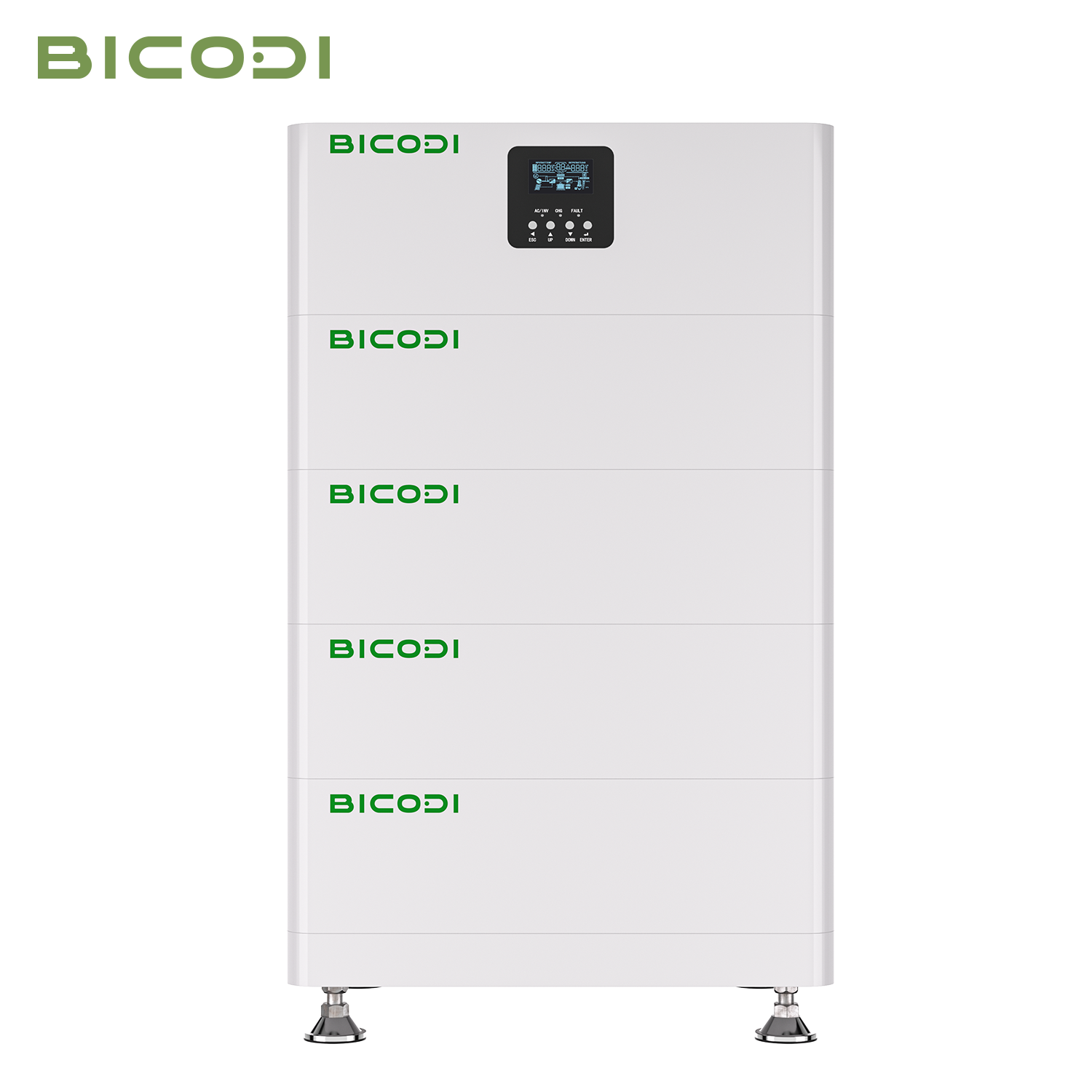

D048100H05

Short Description:

D048100H05 standard battery system unit. Customers can choose a specific number of D048100H05 according to their needs, and create a battery pack with a large capacity through the integration process to meet the long-term power needs of users. This product is especially suitable for energy saving use with high temperature operation, small installation space, long energy saving time and long service life.

Sketch

Maximum capacity is 5120Wh
Super stable lilifepo4 lithium battery chemistry, 6000+ cycle life
The communication interface is CAN/RS485
Store humidity：10%RH~90%RH
Easy to measure: can be connected in parallel to 48V base
Compatibility: Compatible with Tier 1 inverter brands
SizeEast compact installation: modular design for quick installation
High energy cost: long life cycle and good performance
Safety: Smart BMS is safer

Basic Parameters

Name : D048100H05
Nominal voltage : 48v
Standard capacity : Lifepo4 3.2V 105Ah lithium battery
Output Waveform : Pure Sine Wave

Send email to us

Product Detail

Product Tags

DESCRIPTION

MULTIFUNCTIONAL OUTPUTS

1. Safety: electrical safety; battery voltage protection; electronic security charging; release a strong defense; short-term protection; battery protection, over-temperature protection, MOS over-temperature protection, battery over-temperature protection, balancing

2.Compatible with inverter brands: Victron, SMA, GoodWe, Growatt, Jinlang, Deye, Sofar Solar, Voltronic Power, SRNE SoroTec Power, MegaRevo, etc. more than 90% of the sales in the market.

3.Checking parameters: total electricity; current, temperature; battery power; battery voltage difference; MOS temperature; circular data; SOC; SOH

PRODUCTS DESCRIPTION

Physical Parameter	Model Number	D048100H05
	Battery Cell	LFP 3.2V 105Ah
	Weight	47.6kg
	Dimension	593393200mm
	Protection level	IP21(Indoor)/IP65(Outdoor)
	Warranty	5 years
Electrical Parameters	Capacity	5.37 kWh
	Available Capacity	5.1 kWh
	Discharging Efficiency	Above 95%
	Rated Voltage	405V
	Work Voltage Range	400 V~500V
	IR:	<15mΩ
	Cycle life	Above 6000times
Running Mode	Standard Charge and Discharge Current	50A
	Max Charge and Discharge Current	100A
	Maximum Short-Circuit Current	500A
	Discharging Temperature Range	-20℃-60℃
	Store Humidity	10%RH~90%RH
BMS	Monitoring Parameters	Total Voltage; Current, Temperature; Cell Voltage; Cell Voltage Difference; MOS Temperature; Cycle Data; SOC; SOH
	Protection	Overall Voltage Protection; Cell Voltage Protection; Charge Overcurrent Protection; Discharge Overcurrent Protection; Short Circuit Protection; Cell Temperature Protection, Ambient Temperature Protection, MOS high-Temperature Protection, Cell Voltage Difference Protection, Auto-balanced Function
	Communication Port	CAN/RS485
	Compatible Inverter Brand	More Than 90% of the Brands on The Market Include Victron, SMA, GoodWe, Growatt, Ginlong, Deye, Sofar Solar, Voltronic Power,SRNE SoroTec Power, and MegaRevo.
	Maximum Number of Parallel Machines	16
	Cooling Method	Natural Cooling
	Installation Method	Wall-Mounted
	Safety Certification	UN38.3、MSDS、CE、UL1973、IEC62619(Cell&Pack)

FAQ FOR PORTABLE POWER STATION

What brand of the battery cell do you ues?

EVE, Greatpower, Lisheng… are the mian brand we ues. As the shortage of cell market, we usually adopt the cell brand flexibly to ensure the delivery time of customer orders.
What we can promise to our customers is we ONLY use grade A 100% original new cellls.

How many year of your battery's warranty?

All of our business partner can enjoy the longest warranty 10 years!

Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye, Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect...

How do you offer after-sales service to solve product problem？

We have professional engineers to provide technical service remotely. If our engineer diagnoses that the product parts or batteries are broken, we will provide a new part or battery to the customer free of charge immediately.

What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3, MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.
