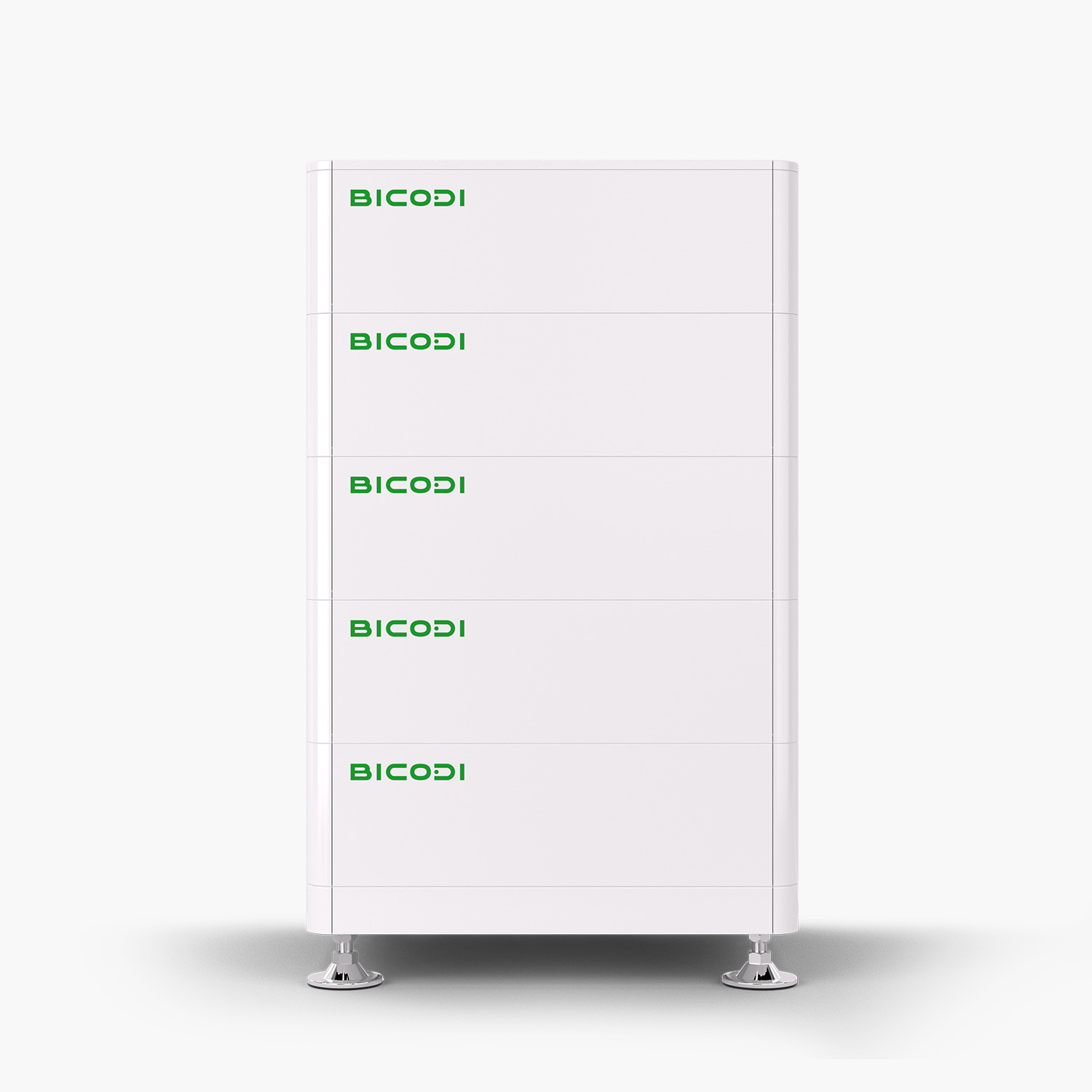

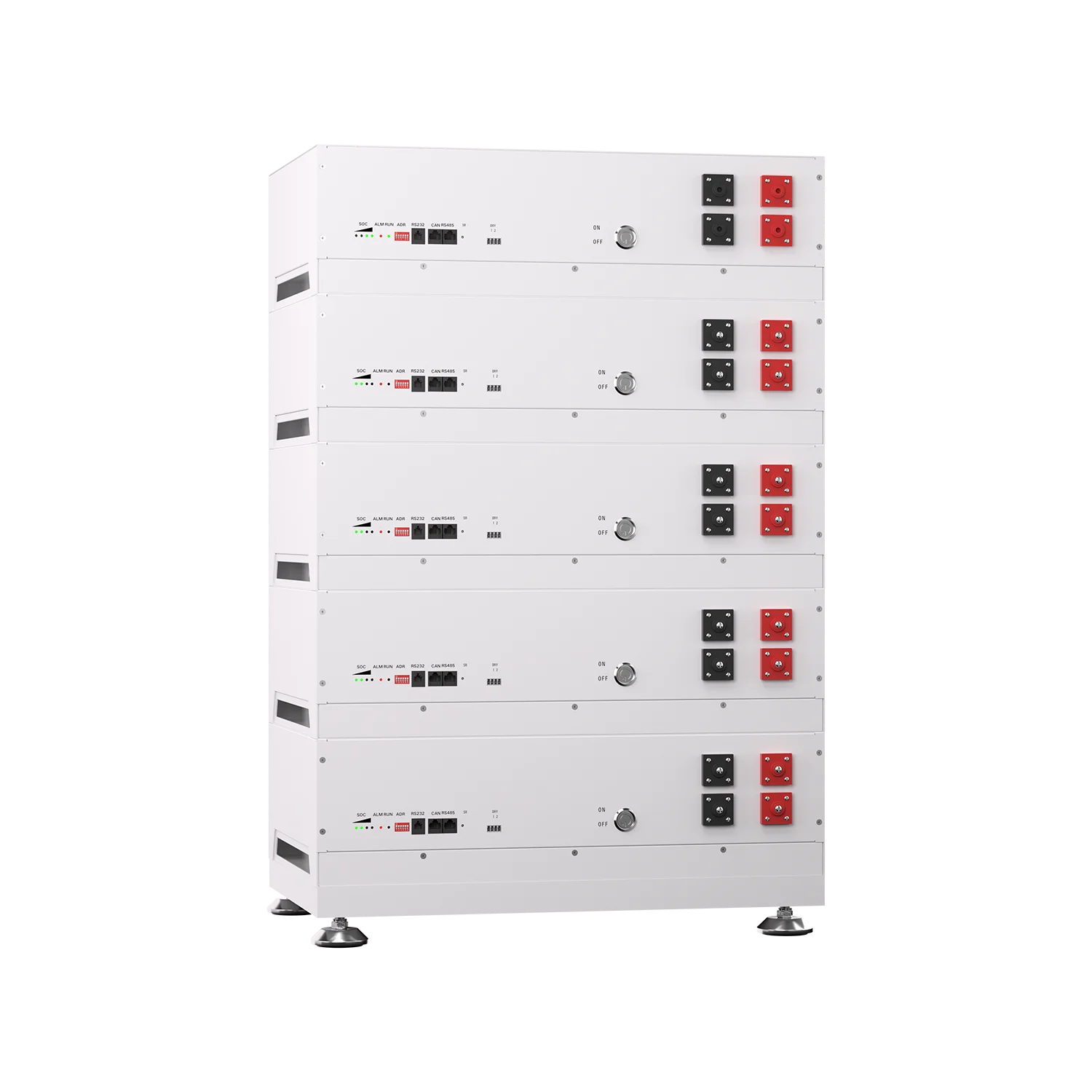

BD048100L05 Residential Energy Storage System Stacked 5KW
DESCRIPTION
MULTIFUNCTIONAL OUTPUTS
1. Safety: electrical safety; battery voltage protection; electronic security charging; release a strong defense; short-term protection; battery protection, over-temperature protection, MOS over-temperature protection, battery over-temperature protection, balancing
2.Compatible with inverter brands: Victron, SMA, GoodWe, Growatt, Jinlang, Deye, Sofar Solar, Voltronic Power, SRNE SoroTec Power, MegaRevo, etc. more than 90% of the sales in the market.
3.Checking parameters: total electricity; current, temperature; battery power; battery voltage difference; MOS temperature; circular data; SOC; SOH
PRODUCT HIGHLIGHTS
PRODUCT DETAILS

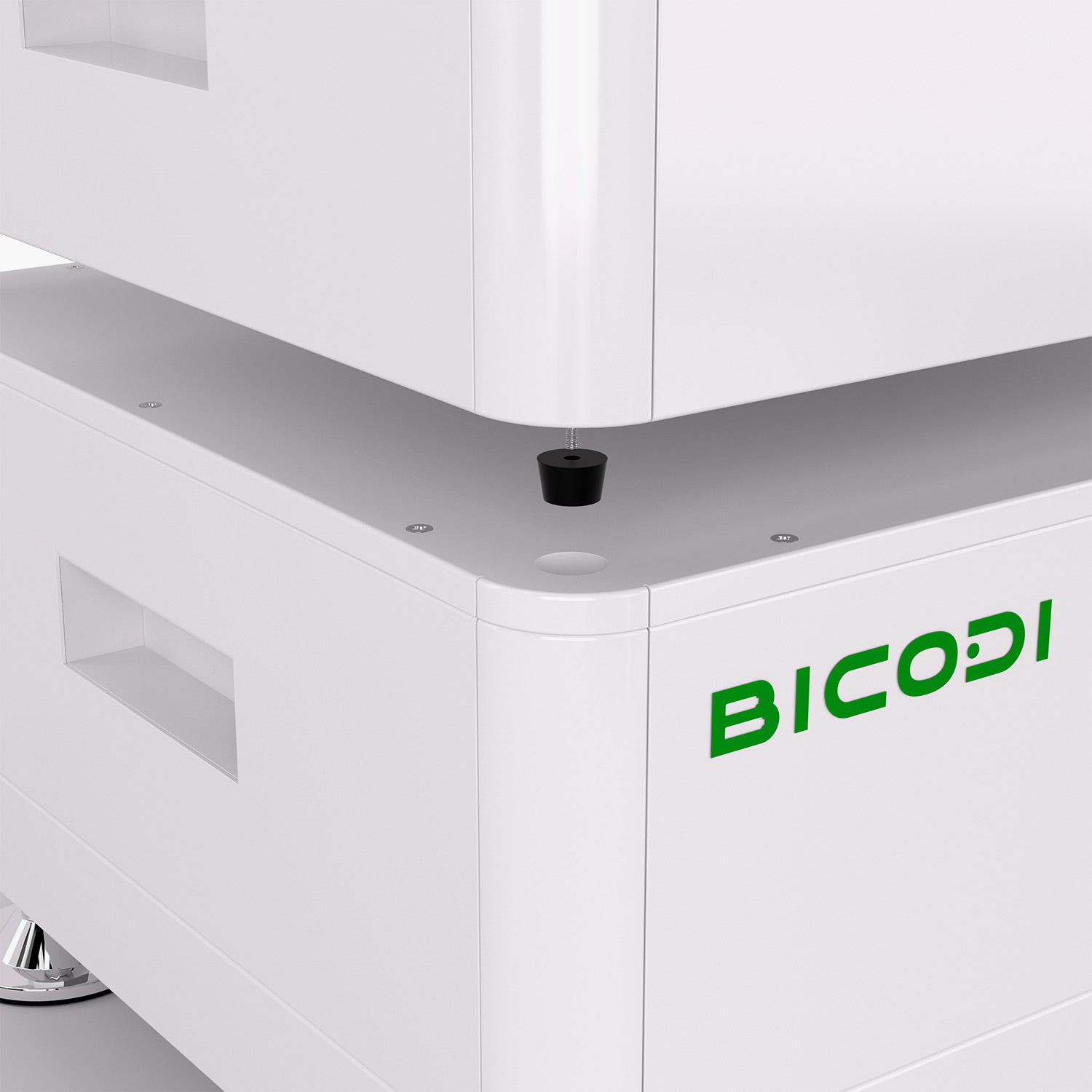

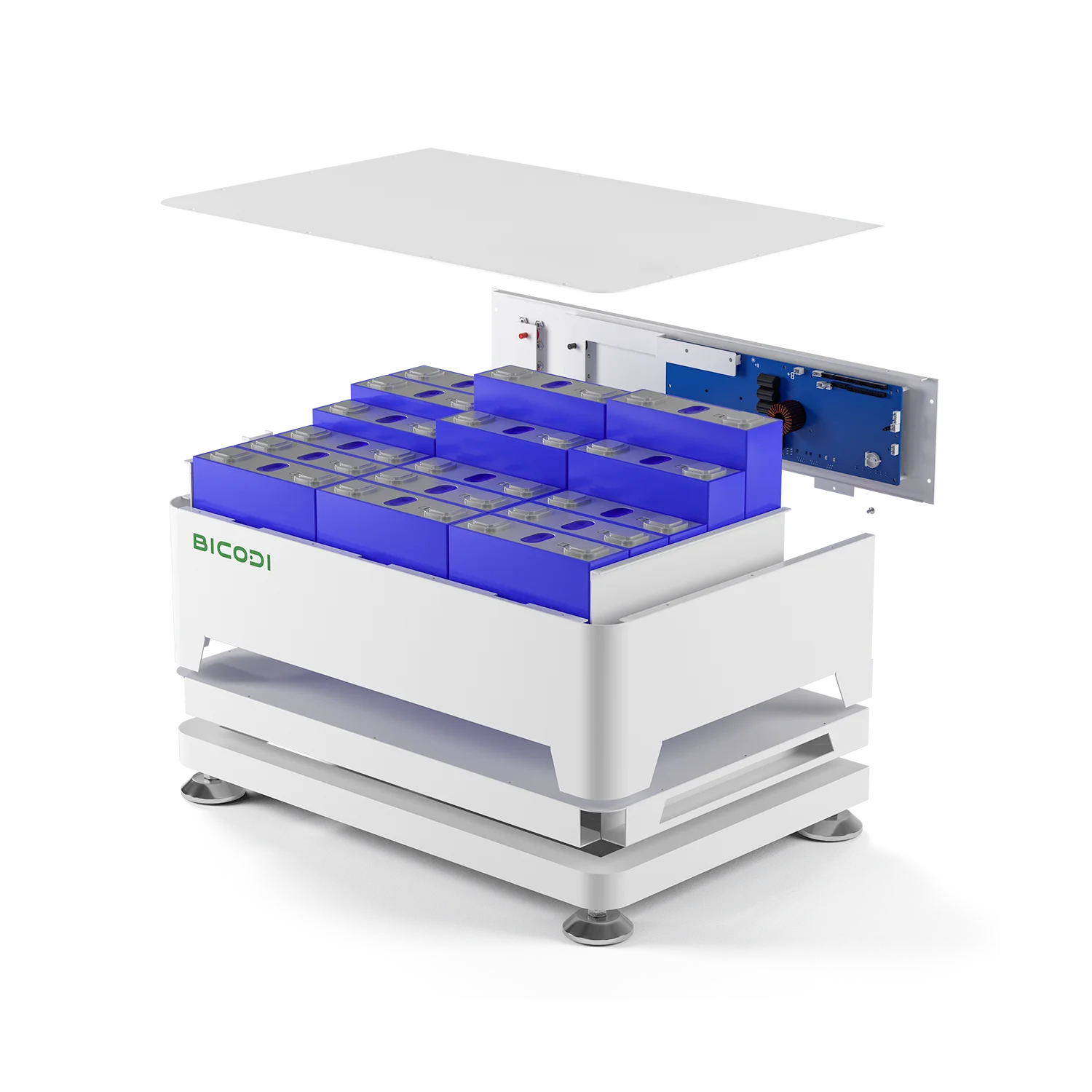

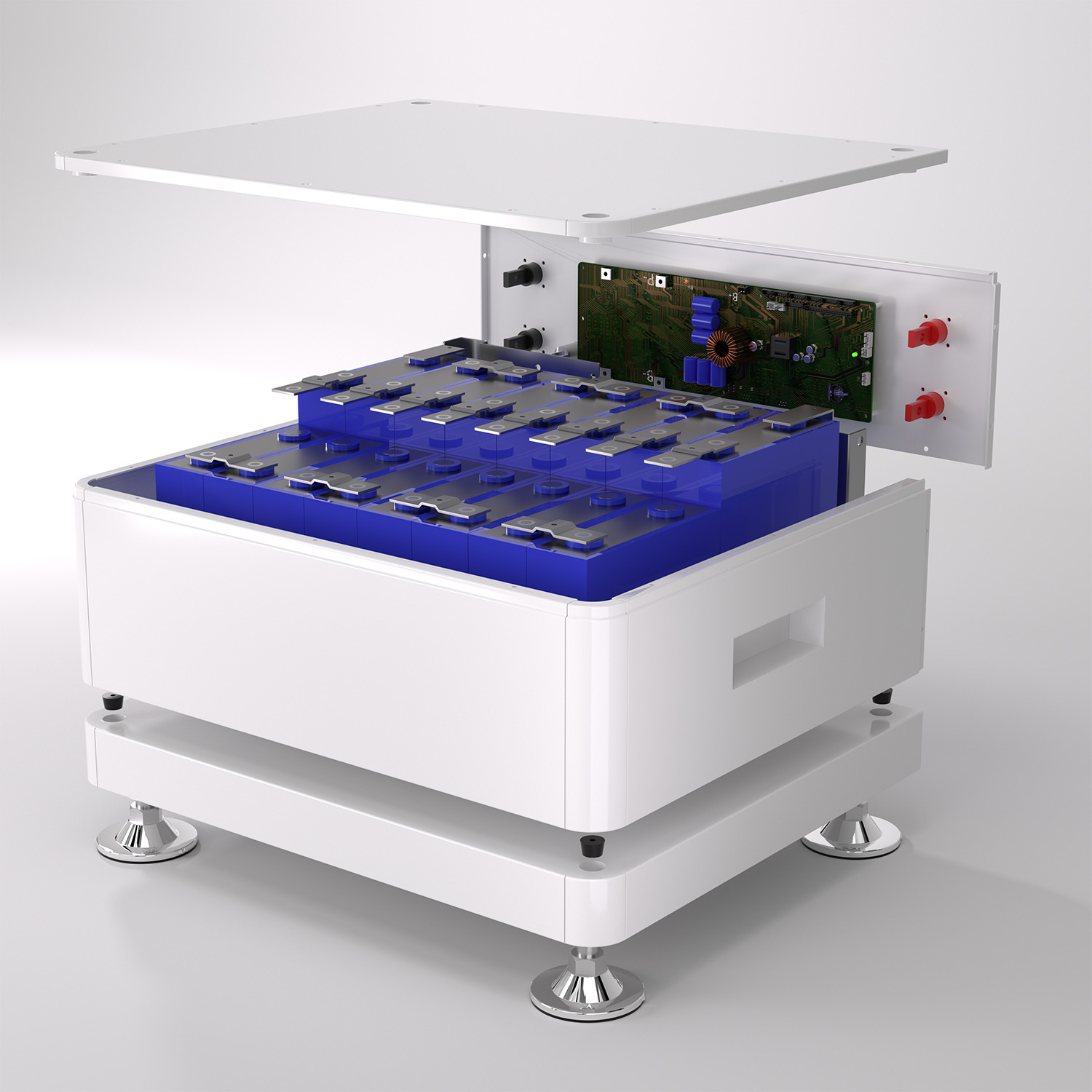

BD048100L05 adopts a sheet metal shell design, which takes into account the strength of the body while maintaining long-term usability. The interior is equipped with lithium iron phosphate battery cells and our self-developed protective plate, making your home energy storage system stable and worry free
FAQ FOR RESIDENTIAL ENERGY STORAGE SYSTEM
| Model Name | BD048100L05 | |||||||||
| Number of Modules | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Energy Capacity | 5.0kWh | 10.0kWh | 15.0kWh | 20.0kWh | 25.0kWh | 30.0kWh | 35.0kWh | 40.0kWh | 45.0kWh | 50.0kWh |
| Dimension | 520*431.5*160 (MM) |
520*430*370 (MM) |
520*430*530 (MM) |
520*430*690 (MM) |
520*430*850 (MM) |
520*430*1010 (MM) |
520*430*1170 (MM) |
520*430*1330 (MM) |
520*430*1490 (MM) |
520*430*1650 (MM) |
| Weight | 49KG | 96KG | 143KG | 190KG | 237KG | 284KG | 331KG | 378KG | 425KG | 472KG |
| Standard Charge & Discharge Current |
0.6C(60A) | |||||||||
| Max Charge & Discharge Continuous Current |
100A | 200A | 200A | 200A | 200A | 200A | 200A | 200A | 200A | 200A |
| Battery Type | LiFePO4 | |||||||||
| Nominal Voltage | 51.2V | |||||||||
| Working Voltage Range |
42V~58.4V | |||||||||
| IP Protection | IP21 | |||||||||
| Designed Cycles Life | ≥6000cls | |||||||||
| Charging Temp. Range |
0-50℃ | |||||||||
| Discharging Temp. Range |
-10-50℃ | |||||||||
| DOD | 0.9 | |||||||||
| Battery System in Parallel |
16pcs | |||||||||
| Battery Max Charge&Discharge Continuous Current |
Works with a 5KW inverter with a single module | |||||||||

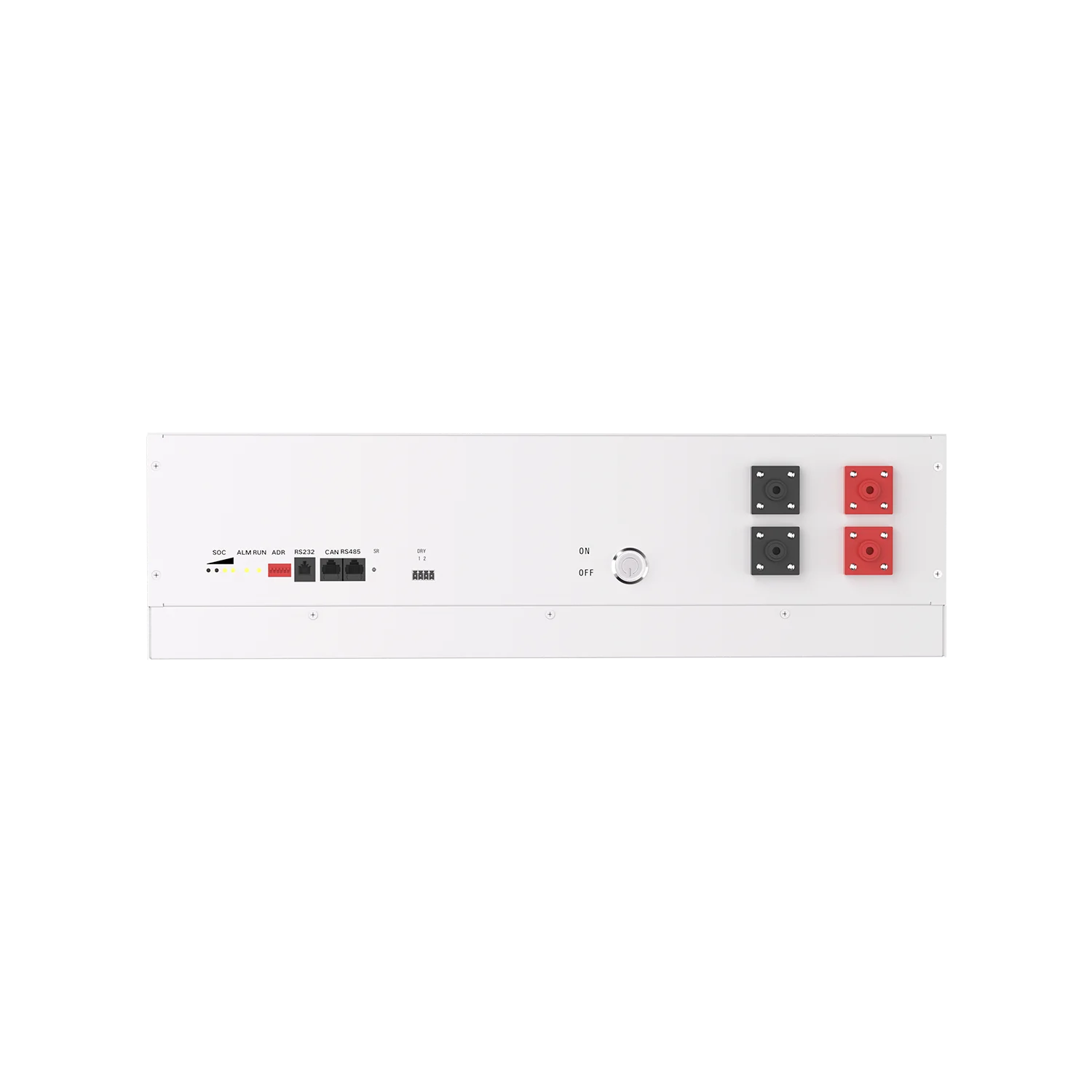

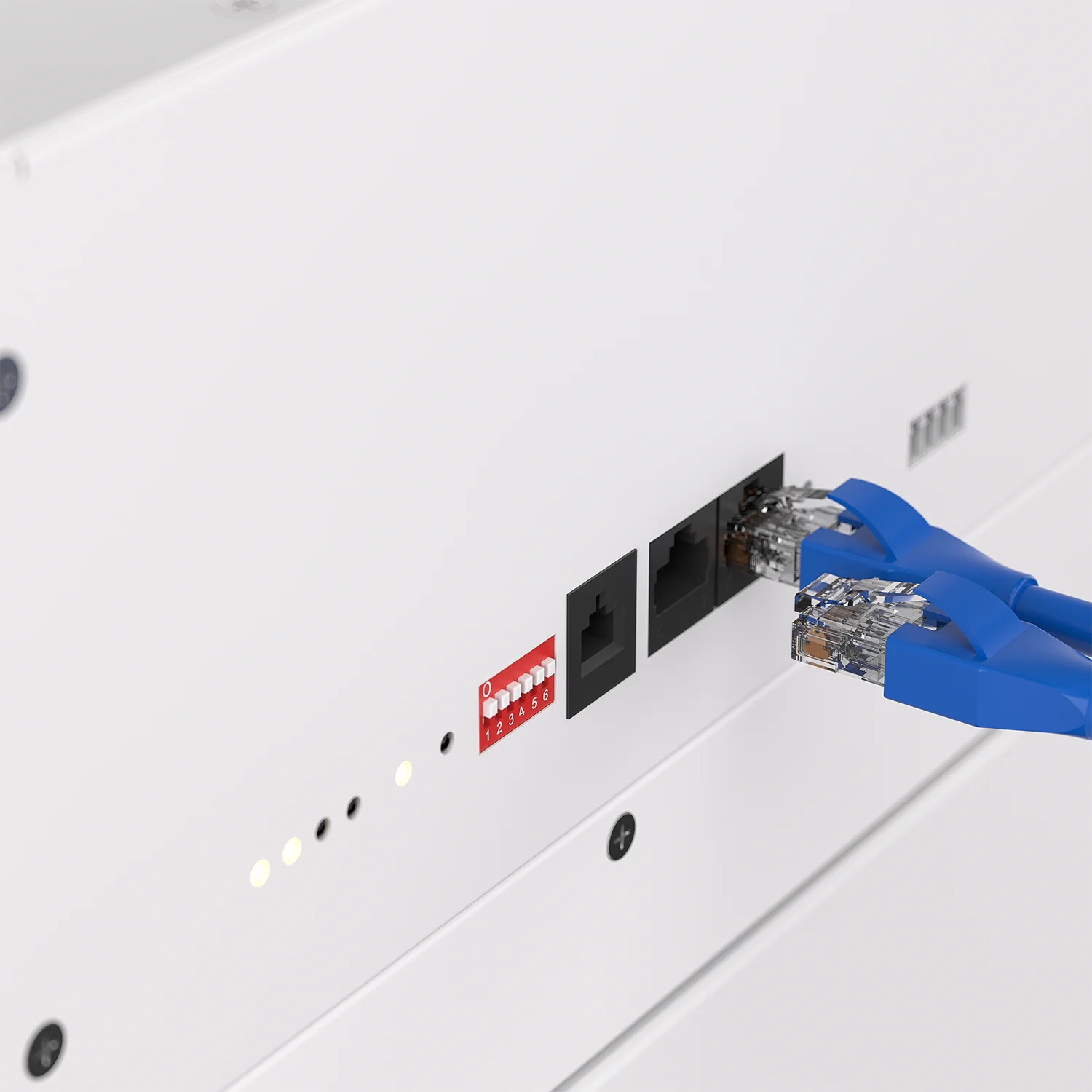

| Communication Port | CAN/RS485 | |||||||||
| Warranty | 10Years | |||||||||
| Certification | UN38.3、MSDS、CE、UL1973、IEC62619(Cell&Pack) | |||||||||
